• Low Noise: 30μVRMS (10Hz to 100kHz)
|
• Low Quiescent Current: 30μA
|
• Low Dropout Voltage: 340mV
|
• Output Current: 200mA
|
• Fixed Output Voltage: –5V
|
• Adjustable Output from –1.22V to –20V
|
|
| CATALOG |
LT1964ES5-SD#TRPBF COUNTRY OF ORIGIN
|
LT1964ES5-SD#TRPBF PARAMETRIC INFO
|
LT1964ES5-SD#TRPBF PACKAGE INFO
|
LT1964ES5-SD#TRPBF MANUFACTURING INFO
|
LT1964ES5-SD#TRPBF PACKAGING INFO
|
LT1964ES5-SD#TRPBF ECAD MODELS
|
LT1964ES5-SD#TRPBF APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.2 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Adjustable |
| Output Voltage Range (V) |
<1.8 |
| Junction to Ambient |
250°C/W |
| Junction to Case |
60°C/W |
| Polarity |
Negative |
| Special Features |
Current Limit|Shutdown|Thermal Protection |
| Load Regulation |
7mV |
| Line Regulation |
12mV |
| Maximum Dropout Voltage @ Current (V) |
0.15@-1mA|0.42@-200mA|0.2@-10mA|0.33@-100mA |
| Minimum Input Voltage (V) |
-20 |
| Maximum Input Voltage (V) |
-1.9 |
| Output Voltage (V) |
-1.22 to -20 |
| Typical Quiescent Current (mA) |
0.03 |
| Typical Dropout Voltage @ Current (V) |
0.1@-1mA|0.34@-200mA|0.15@-10mA|0.26@-100mA |
| Reference Voltage (V) |
-1.22 |
| Accuracy (%) |
±1.5(Typ) |
| Supplier Temperature Grade |
Extended |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Ground Current @ Full Load (mA) |
2.5 |
| Typical PSRR (dB) |
54 |
| Typical Output Capacitance (uF) |
1 |
| Typical Output Noise Voltage (uVrms) |
30 |
| Output Capacitor Type |
Ceramic|Tantalum|Aluminum |
|
|
PACKAGE INFO
|
| Supplier Package |
TSOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
0.9(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.9 |
| Package Overall Width (mm) |
2.8 |
| Package Overall Height (mm) |
1(Max) |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-193AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|

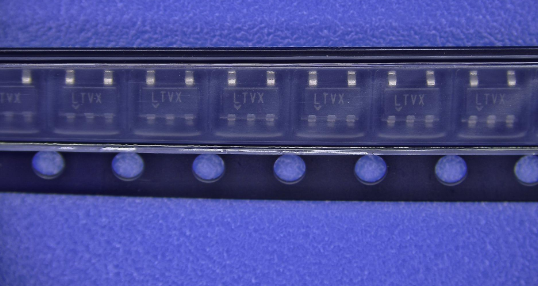

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
3 Pin At Sprocket Hole |
| Packaging Document |
Link to Datasheet |
|
|

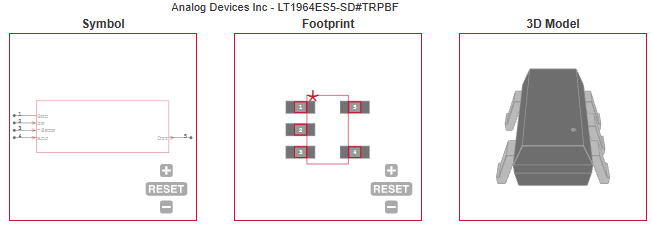

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Battery-Powered Instruments |
| • Low Noise Regulator for Noise-Sensitive Instrumentation |
| • Negative Complement to LT1761 Family of Positive LDOs |
| |
