• Low Noise Voltage: 1.9nV/√Hz (100kHz)
|
• Low Supply Current: 3mA/Amp Max
|
• Gain Bandwidth Product: 100MHz
|
| • Dual LT6203 in Tiny DFN Package
|
| • Low Distortion: –80dB at 1MHz |
| • Low Offset Voltage: 500µV Max |
| • Wide Supply Range: 2.5V to 12.6V |
| • Input Common Mode Range Includes Both Rails |
| • Output Swings Rail-to-Rail |
| • Common Mode Rejection Ratio 90dB Typ |
| • Unity Gain Stable |
| • Low Noise Current: 1.1pA/√Hz |
| •
Output Current: 30mA Min
|
| • Operating Temperature Range –40°C to 125°C |
| • Low Profile (1mm) SOT-23 (ThinSOT™) Package |
|
| CATALOG |
| LT6202IS8#PBF COUNTRY OF ORIGIN |
LT6202IS8#PBF PARAMETRIC INFO
|
LT6202IS8#PBF PACKAGE INFO
|
LT6202IS8#PBF MANUFACTURING INFO
|
LT6202IS8#PBF PACKAGING INFO
|
| LT6202IS8#PBF APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
PARAMETRIC INFO
|
| Manufacturer Type |
Low Noise Amplifier |
| type |
Low Noise Amplifier |
| Rail to Rail |
Rail to Rail Input/Output |
| Minimum Single Supply Voltage (V) |
2.5 |
| Number of Channels per Chip |
1 |
| Minimum PSRR (dB) |
60 |
| Typical Single Supply Voltage (V) |
3|5|9|12 |
| Maximum Single Supply Voltage (V) |
12.6 |
| Minimum Dual Supply Voltage (V) |
±1.25 |
| Typical Gain Bandwidth Product (MHz) |
90 |
| Maximum Input Offset Voltage (mV) |
2@5V |
| Typical Dual Supply Voltage (V) |
±3|±5 |
| Maximum Input Offset Current (uA) |
1.1@5V |
| Maximum Dual Supply Voltage (V) |
±6.3 |
| Maximum Operating Supply Voltage (V) |
±6.3|12.6 |
| Maximum Input Bias Current (uA) |
2.5@5V |
| Minimum CMRR (dB) |
60 |
| Maximum Supply Voltage Range (V) |
12.5 to 15 |
| Minimum CMRR Range (dB) |
60 to 65 |
| Typical Voltage Gain (dB) |
96.9 |
| Typical Slew Rate (V/us) |
24@5V |
| Minimum Slew Rate (V/us) |
17@5V |
| Typical Input Offset Current (uA) |
0.12@5V |
| Typical Settling Time (ns) |
85 |
| Typical Input Noise Voltage Density (nV/rtHz) |
2.9@5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) |
1.1@5V |
| Shut Down Support |
no |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Rating |
Industrial |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Single|Dual |
| Maximum Supply Current (mA) |
3@5V |
| Typical High Level Output Voltage (V) |
0.225 |
| Typical Low Level Output Voltage (V) |
0.185 |
| Input Offset Voltage Drift (uV/°C) |
twenty four |
|
|
PACKAGE INFO
|
| Supplier packaging |

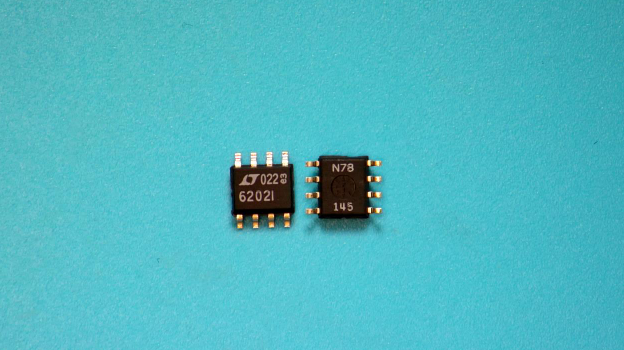

SOIC N |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
8 |
| Pin shape |
Gull-wing |
| PCB |
8 |
| ears |
N/R |
| Pin spacing (mm) |
1.27 |
| Package length (mm) |
5(Max) |
| Package width (mm) |
3.99(Max) |
| Package height (mm) |
1.5(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Mounting surface height (mm) |
1.75(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Small Outline IC Narrow Body |
| Package series name |
SO |
| JEDEC |
MS-012AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
260 |
| Wave soldering time (seconds) |
10 |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
Ag |
| Terminal Base Material |
Alloy 42 |
|
|
PACKAGING INFO
|
| Package |
Tube |
| Packing quantity |
100 |
|
|
APPLICATIONS
|
• Low Noise, Low Power Signal Processing
|
• Active Filters
|
| • Rail-to-Rail Buffer Amplifiers |
| • Driving A/D Converters |
| • DSL Receivers |
• Battery Powered/Battery Backed Equipment
|
| |
| |
