• Silent Switcher® Architecture
n Ultralow EMI Emissions
|
• High Efficiency at High Frequency
n Up to 96% Efficiency at 1MHz, 12VIN to 5VOUT
n Up to 94% Efficiency at 2MHz, 12VIN to 5VOUT
|
• Wide Input Voltage Range: 3.4V to 42V
|
• Ultralow Quiescent Current Burst Mode® Operation:
n 2.5μA IQ Regulating 12VIN to 3.3VOUT
n Output Ripple < 10mVP-P
|
• Fast Minimum Switch On-Time: 30ns
|
| • Low Dropout Under All Conditions: 125mV at 1A
|
| • Safely Tolerates Inductor Saturation in Overload |
| • Adjustable and Synchronizable: 200kHz to 3MHz |
| • Peak Current Mode Operation |
|
| CATALOG |
LT8614IUDC#TRPBF PARAMETRIC INFO
|
LT8614IUDC#TRPBF PACKAGE INFO
|
LT8614IUDC#TRPBF MANUFACTURING INFO
|
LT8614IUDC#TRPBF PACKAGING INFO
|
LT8614IUDC#TRPBF ECAD MODELS
|
LT8614IUDC#TRPBF APPLICATIONS
|
|
PARAMETRIC INFO
|
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
3.4 |
| Maximum Input Voltage (V) |
42 |
| Maximum Output Current (A) |
4 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Industrial |
| Switching Frequency (kHz) |
200 to 3000 |
| Efficiency (%) |
96 |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
3.4 to 42 |
| Output Type |
Adjustable |
| Line Regulation |
0.02%/V |
| Typical Quiescent Current (uA) |
2.5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
8.5 |
|
|
PACKAGE INFO
|
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
18 |
| Lead Shape |
No Lead |
| PCB |
18 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
4 |
| Package Width (mm) |
3 |
| Package Height (mm) |
0.75(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
4 |
| Package Overall Width (mm) |
3 |
| Package Overall Height (mm) |
0.75 |
| Seated Plane Height (mm) |
0.75 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

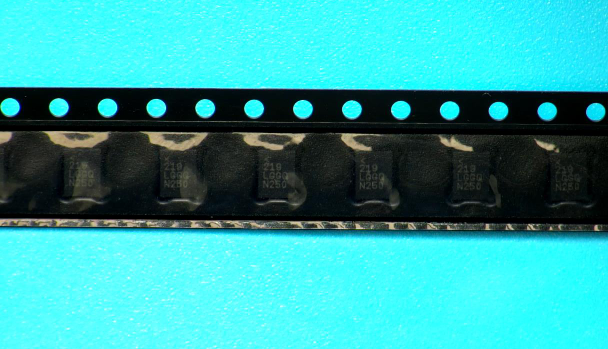

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
12.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|

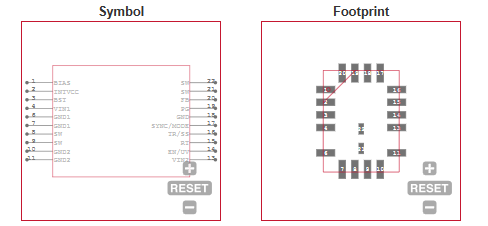

ECAD MODELS
|
|
|
APPLICATIONS
|
• Automotive and Industrial Supplies
|
| • General Purpose Step-Down
|
• GSM Power Supplies
|
| |
| |
