• Wide Input Voltage Range: 3.4V to 42V
|
• 5A Maximum Continuous, 7A Peak Transient Output
|
• External Compensation: Fast Transient Response and Current Sharing (LT8637)
|
• Fast Minimum Switch On-Time: 30ns
|
• Low Dropout Under All Conditions: 100mV at 1A
|
• Forced Continuous Mode
|
|
| CATALOG |
LT8636JV#PBF COUNTRY OF ORIGIN
|
LT8636JV#PBF PARAMETRIC INFO
|
LT8636JV#PBF PACKAGE INFO
|
LT8636JV#PBF MANUFACTURING INFO
|
LT8636JV#PBF PACKAGING INFO
|
LT8636JV#PBF ECAD MODELS
|
LT8636JV#PBF APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Korea (Republic of)
|
|
PARAMETRIC INFO
|
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
3.4 |
| Maximum Input Voltage (V) |
42 |
| Output Voltage (V) |
0.97 to 41.58 |
| Maximum Output Current (A) |
5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Maximum Switching Frequency (kHz) |
200 to 3000 |
| Efficiency (%) |
96 |
| Switching Regulator |
Yes |
| Operating Supply Voltage Range (V) |
3.4 to 42 |
| Output Type |
Adjustable |
| Typical Quiescent Current (uA) |
2.5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
10 |
|
|
PACKAGE INFO
|
| Supplier Package |
LQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
20 |
| Lead Shape |
No Lead |
| PCB |
20 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
4 |
| Package Width (mm) |
3 |
| Package Height (mm) |
0.92 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
4 |
| Package Overall Width (mm) |
3 |
| Package Overall Height (mm) |
0.94 |
| Seated Plane Height (mm) |
0.94 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Low Profile Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
490 |
|
|

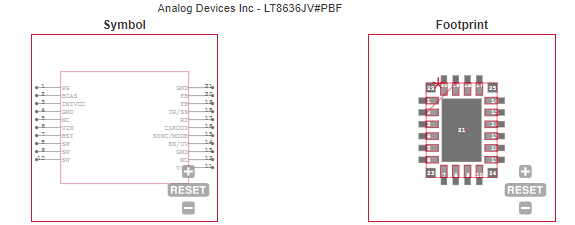

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Automotive and Industrial Supplies |
| • General Purpose Step-Down |
| |
