• Silent Switcher® Architecture
n Ultralow EMI Emissions
n Spread Spectrum Frequency Modulation
|
• High Efficiency at High Frequency
n Up to 95% Efficiency at 1MHz, 12VIN to 5VOUT
n Up to 94% Efficiency at 2MHz, 12VIN to 5VOUT
|
• Wide Input Voltage Range: 3V to 65V
|
• 3.5A Maximum Continuous Output,
5A Peak Transient Output
|
• Ultralow Quiescent Current Burst Mode® Operation
n 2.5μA IQ Regulating 12VIN to 3.3VOUT
n Output Ripple < 10mVP-P
|
| • Fast Minimum Switch On-Time: 35ns |
| • Low Dropout Under All Conditions: 130mV at 1A |
| • Safely Tolerates Inductor Saturation in Overload |
• Adjustable and Synchronizable: 200kHz to 3MHz
|
| • Peak Current Mode Operation |
| • Output Soft-Start and Tracking |
|
| CATALOG |
LT8641EUDC#PBF COUNTRY OF ORIGIN
|
LT8641EUDC#PBF PARAMETRIC INFO
|
LT8641EUDC#PBF PACKAGE INFO
|
LT8641EUDC#PBF MANUFACTURING INFO
|
LT8641EUDC#PBF PACKAGING INFO
|
LT8641EUDC#PBF ECAD MODELS
|
LT8641EUDC#PBF APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Malaysia |
|
PARAMETRIC INFO
|
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
3 |
| Maximum Input Voltage (V) |
65 |
| Output Voltage (V) |
0.81 to 64 |
| Maximum Output Current (A) |
3.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Extended |
| Switching Frequency (kHz) |
200 to 3000 |
| Efficiency (%) |
95 |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
3 to 65 |
| Output Type |
Adjustable |
| Line Regulation |
0.03%/V |
| Typical Quiescent Current (uA) |
300 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
8.2 |
|
|

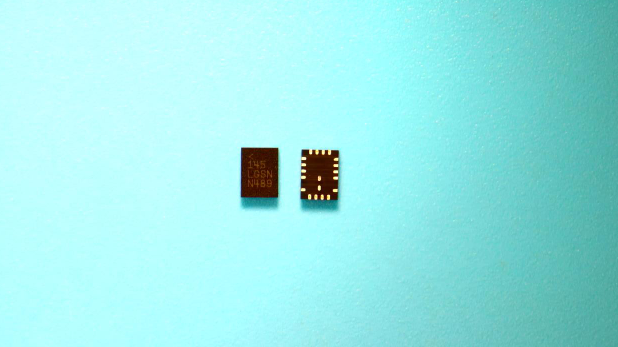

PACKAGE INFO
|
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
18 |
| Lead Shape |
No Lead |
| PCB |
18 |
| Tab |
N/R |
| Package Length (mm) |
4 |
| Package Width (mm) |
3 |
| Package Height (mm) |
0.75(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
91 |
|
|

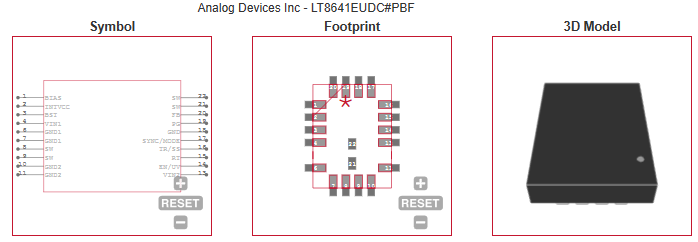

ECAD MODELS
|
|
|
APPLICATIONS
|
• Automotive and Industrial Supplies
|
| • General Purpose Step-Down |
• GSM Power Supplies
|
|
| |
