• Two Low Voltage Adjustable Inputs (0.5V)
|
• Pin Selectable Input Polarity Allows Negative and OV Monitoring
|
• Guaranteed Threshold Accuracy: ±1.5%
|
• 6.5V Shunt Regulator for High Voltage Operation
|
• Low 50μA Quiescent Current
|
• Buffered 1V Reference for Negative Supply Offset
|
• Input Glitch Rejection
|
• Adjustable Reset Timeout Period
|
• Selectable Internal Timeout Saves Components
|
• Accurate UVLO for 2.5V, 3.3V, 5V Systems
|
• Ultralow Voltage Reset: VCC = 0.5V Guaranteed
|
• Space Saving 8-Lead TSOT-23 and 3mm × 2mm DFN Packages
|
|
| CATALOG |
LTC2909ITS8-3.3#TRPBF COUNTRY OF ORIGIN
|
LTC2909ITS8-3.3#TRPBF PARAMETER INFORMATION
|
LTC2909ITS8-3.3#TRPBF PACKAGING INFORMATION
|
LTC2909ITS8-3.3#TRPBF MANUFACTURING INFORMATION
|
LTC2909ITS8-3.3#TRPBF PACKAGING INFORMATION
|
LTC2909ITS8-3.3#TRPBF ECAD MODELS
|
LTC2909ITS8-3.3#TRPBF APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETER INFORMATION
|
| Output Driver |
Active Low/Open Drain |
| Manual Reset |
no |
| Watchdog Timer |
no |
| Number of Supervisors |
3 |
| Typical Reset Threshold Voltage (V) |
0.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Chip Enable Signals |
no |
| Power Fail Detection |
no |
| Battery Backup Switching |
no |
| Maximum Reset Active Time (ms) |
260 |
| Maximum Operating Supply Voltage (V) |
6 |
| Minimum Reset Threshold Voltage (V) |
0.4925 |
| Maximum Reset Threshold Voltage (V) |
0.5075 |
| Monitored Voltage (V) |
3.3 |
| Maximum Supply Current (uA) |
150 |
| Minimum Operating Supply Voltage (V) |
0.5 |
| Vendor Temperature Grade |
Industrial |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| type |
Voltage Monitor |
| Programmability |
yes |
|
|
PACKAGING INFORMATION
|
| Supplier Packaging |
TSOT-23 |
| Basic package types |
Lead-Frame SMT |
| Number of Pins |
8 |
| Pin shape |
Gull-wing |
| PCB |
8 |
| Ear piece |
N/R |
| Pin spacing (mm) |
0.65 |
| Package length (mm) |
2.9 |
| Package width (mm) |
1.75(Max) |
| Package height (mm) |
0.9(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.9 |
| Package Overall Width (mm) |
2.8 |
| Package Overall Height (mm) |
1(Max) |
| Mounting surface height (mm) |
1(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Thin Small Outline Transistor |
| Package Series Name |
SOT |
| JEDEC |
MO-193 |
| Package Outline |
Link to data sheet |
|
|
MANUFACTURING INFORMATION
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow time (seconds) |
30 |
| Reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to data sheet |
| Maximum wave soldering temperature (°C) |
260 |
| Wave soldering time (seconds) |
10 |
| Wave soldering temperature source |
Link to data sheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
Ag |
| Terminal base material |
Cu Alloy |
| Number of Wave Cycles |
2 |
|
|

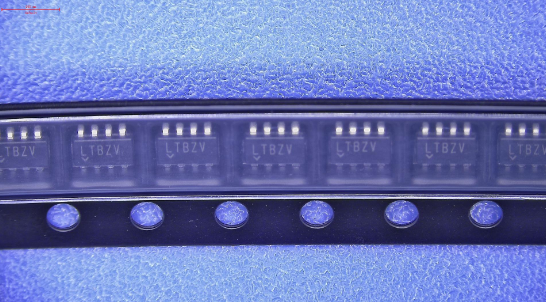

| PACKAGING INFORMATION |
| Packaging Suffix |
TR |
| Package |
Tape and Reel Packaging |
| Packing quantity |
2500 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
Q2 |
| Package Type File |
Link to data sheet |
| Tape Type |
Embossed |
|
|

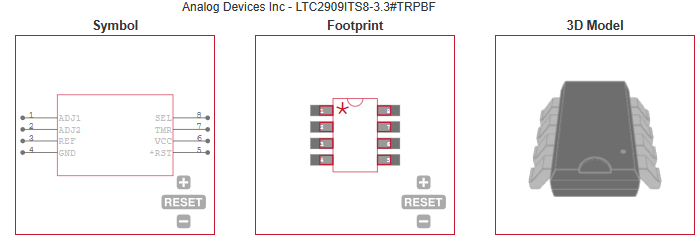

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Desktop and Notebook Computers |
| • Handheld Devices |
| • Network Servers |
| • Core, I/O Monitor |
| • Automotive |
| |
