• Two Low Voltage Adjustable Inputs (0.5V)
|
• Pin Selectable Input Polarity Allows Negative
and OV Monitoring
|
• Guaranteed Threshold Accuracy: ±1.5%
|
• 6.5V Shunt Regulator for High Voltage Operation
|
• Low 50μA Quiescent Current
|
• Buffered 1V Reference for Negative Supply Offset
|
• Input Glitch Rejection
|
• Adjustable Reset Timeout Period
|
• Selectable Internal Timeout Saves Components
|
• Open-Drain ⎯
R⎯
S⎯T Output
|
• Accurate UVLO for 2.5V, 3.3V, 5V Systems
|
• Ultralow Voltage Reset: VCC = 0.5V Guaranteed
|
• Space Saving 8-Lead TSOT-23 and 3mm × 2mm DFN
Packages
|
|
| CATALOG |
LTC2909ITS8-5#TRMPBF COUNTRY OF ORIGIN
|
LTC2909ITS8-5#TRMPBF PARAMETRIC INFO
|
LTC2909ITS8-5#TRMPBF PACKAGE INFO
|
LTC2909ITS8-5#TRMPBF MANUFACTURING INFO
|
LTC2909ITS8-5#TRMPBF PACKAGING INFO
|
LTC2909ITS8-5#TRMPBF ECAD MODELS
|
LTC2909ITS8-5#TRMPBF APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
United States of America
|
|
PARAMETRIC INFO
|
| Output Driver |
Active Low/Open Drain |
| Manual Reset |
No |
| Watchdog Timer |
No |
| Number of Supervisors |
3 |
| Typical Reset Threshold Voltage (V) |
0.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Chip Enable Signals |
No |
| Power Fail Detection |
No |
| Battery Backup Switching |
No |
| Maximum Reset Active Time (ms) |
260 |
| Maximum Operating Supply Voltage (V) |
6 |
| Minimum Reset Threshold Voltage (V) |
0.4925 |
| Maximum Reset Threshold Voltage (V) |
0.5075 |
| Monitored Voltage (V) |
3.3 |
| Maximum Supply Current (uA) |
150 |
| Minimum Operating Supply Voltage (V) |
0.5 |
| Supplier Temperature Grade |
Industrial |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Type |
Voltage Monitor |
| Programmability |
Yes |
|
|
PACKAGE INFO
|
| Supplier Package |
TSOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
0.9(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.9 |
| Package Overall Width (mm) |
2.8 |
| Package Overall Height (mm) |
1(Max) |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-193BA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|

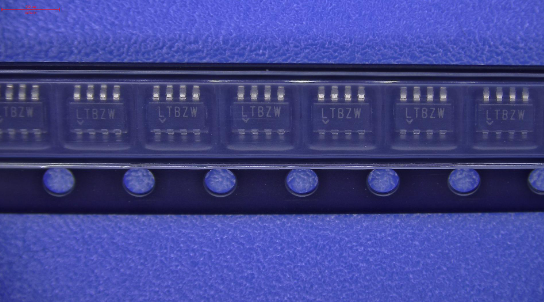

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
500 |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• Desktop and Notebook Computers
|
| • Handheld Devices |
| • Network Servers |
| • Core, I/O Monitor |
• Automotive
|
|
| |
