• Indicates Accumulated Battery Charge and Discharge
|
• High Accuracy Analog Integration
|
• ADC Measures Battery Voltage and Temperature
|
• Integrated Temperature Sensor
|
• High Side Sense
|
• 1% Voltage and Charge Accuracy
|
• ±50mV Sense Voltage Range
|
|
| CATALOG |
LTC2942IDCB#TRPBF COUNTRY OF ORIGIN
|
LTC2942IDCB#TRPBF LIFECYCLE
|
LTC2942IDCB#TRPBF PARAMETRIC INFO
|
LTC2942IDCB#TRPBF PACKAGE INFO
|
LTC2942IDCB#TRPBF MANUFACTURING INFO
|
LTC2942IDCB#TRPBF PACKAGING INFO
|
LTC2942IDCB#TRPBF ECAD MODELS
|
LTC2942IDCB#TRPBF APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
LIFECYCLE
|
Obsolete
Dec 22,2024
|
|
PARAMETRIC INFO
|
| Type |
Fuel Gauge |
| Battery Type |
Lead-Acid|Li-FePO4|Li-Ion|Li-Pol|NiCd|NiMH |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Operating Supply Voltage Range (V) |
2.7 to 5.5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
0.42 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
DFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
No Lead |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
2 |
| Package Width (mm) |
3 |
| Package Height (mm) |
0.75(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2 |
| Package Overall Width (mm) |
3 |
| Package Overall Height (mm) |
0.75 |
| Seated Plane Height (mm) |
0.75 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Dual Flat Package No Lead, Exposed Pad |
| Package Family Name |
DFN |
| Jedec |
MO-229WCED-1 |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
| |
| PACKAGING INFO |
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
Q2 |
| Packaging Document |
Link to Datasheet |
|
| |

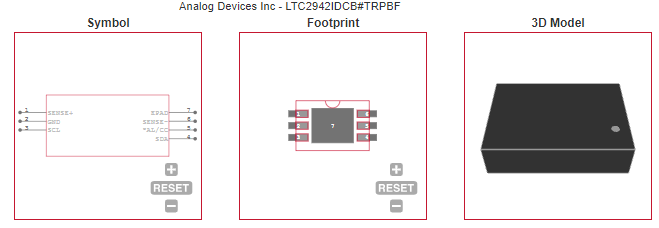

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Low Power Handheld Products |
| • Cellular Phones |
| • MP3 Players |
| • Cameras |
| • GPS |
| |
