• Wide Operating Voltage Range: 4V to 80V
|
• Withstands Surges Over 80V with VCC Clamp
|
• Adjustable Output Clamp Voltage
|
• Ideal Diode Controller Holds Up Output Voltage During Input Brownouts
|
• Reverse Input Protection to –40V
|
• Reverse Output Protection to –20V
|
|
| CATALOG |
LTC4364HS-2#TRPBF COUNTRY OF ORIGIN
|
LTC4364HS-2#TRPBF PARAMETRIC INFO
|
LTC4364HS-2#TRPBF PACKAGE INFO
|
LTC4364HS-2#TRPBF MANUFACTURING INFO
|
LTC4364HS-2#TRPBF PACKAGING INFO
|

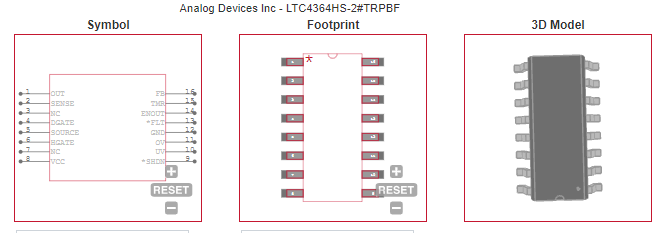

LTC4364HS-2#TRPBF ECAD MODELS
|
LTC4364HS-2#TRPBF APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Positive High Voltage |
| Number of Channels |
1 |
| External FET |
N-Channel |
| Fault Management |
Auto-Restart |
| External Sense Resistor |
Yes |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Maximum Supply Current (mA) |
0.75 |
| Minimum Operating Supply Voltage (V) |
4 |
| Maximum Operating Supply Voltage (V) |
80 |
| Supplier Temperature Grade |
Automotive |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
Gull-wing |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
10.01(Max) |
| Package Width (mm) |
3.99(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
10.01(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Terminal Width (mm) |
0.48(Max) |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AC |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|

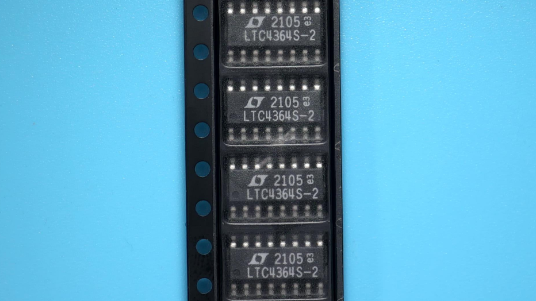

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
|
|
ECAD MODELS
|
|
|
| APPLICATIONS |
| • Automotive/Avionic Surge Protection |
| • Hot Swap/Live Insertion |
| • Redundant Supply ORing |
| • Output Port Protection |
| |
