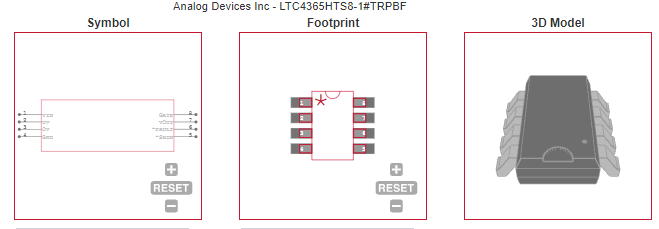

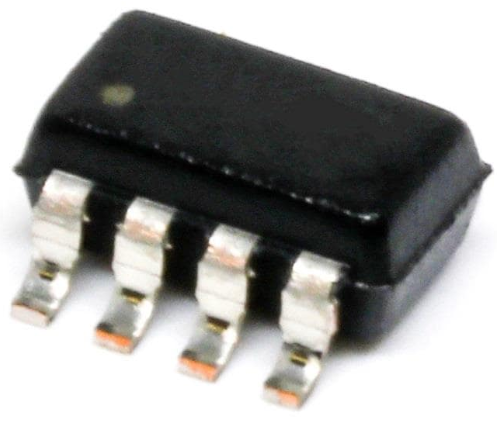

LTC4365HTS8-1#TRPBF Analog Devices IC OVERVOLTAGE PROT TSOT23-8

2025/06/13 101

CATALOG

Malaysia

Type	Over Voltage Protection Controller
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Input Voltage (V)	2.5 to 34
Maximum Supply Current (mA)	0.15
Maximum Operating Supply Voltage (V)	34
Minimum Operating Supply Voltage (V)	2.5
Supplier Temperature Grade	Automotive
Minimum Storage Temperature (°C)	-65
Maximum Storage Temperature (°C)	150

Supplier Package	TSOT-23
Basic Package Type	Lead-Frame SMT
Pin Count	8
Lead Shape	Gull-wing
PCB	8
Tab	N/R
Pin Pitch (mm)	0.65
Package Length (mm)	2.9
Package Width (mm)	1.75(Max)
Package Height (mm)	0.9(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	2.9
Package Overall Width (mm)	2.8
Package Overall Height (mm)	1(Max)
Seated Plane Height (mm)	1(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Thin Small Outline Transistor
Package Family Name	SOT
Jedec	MO-193BA
Package Outline	Link to Datasheet

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Standard	J-STD-020D
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	260
Wave Solder Time (Sec)	10
Wave Temp. Source	Link to Datasheet
Lead Finish(Plating)	Matte Sn annealed
Under Plating Material	Ag
Terminal Base Material	Cu Alloy

Packaging Suffix	TR
Packaging	Tape and Reel
Quantity Of Packaging	2500
Reel Diameter (in)	7
Reel Width (mm)	8.4
Tape Pitch (mm)	4
Tape Width (mm)	8
Feed Hole Pitch (mm)	4
Hole Center to Component Center (mm)	2
Component Orientation	Q2
Packaging Document	Link to Datasheet

• Portable Instrumentation

• Industrial Automation

• Laptops

• Automotive Surge Protection
