• Wide Operating Voltage Range: 2.5V to 34V
|
• Overvoltage Protection to 60V
|
• Reverse Supply Protection to –40V
|
| • LTC4365: Blocks 50Hz and 60Hz AC Power |
| • LTC4365-1: Fast (1ms) Recovery from Fault |
| • No Input Capacitor or TVS Required for Most
Applications |
| • Adjustable Undervoltage and Overvoltage
Protection Range |
| • Charge Pump Enhances External N-Channel MOSFET |
| • Low Operating Current: 125µA |
| • Low Shutdown Current: 10µA |
| • Compact 8-Lead, 3mm × 2mm DFN and
TSOT-23 (ThinSOT™) Packages |
|
| CATALOG |
| LTC4365IDDB#TRPBF COUNTRY OF ORIGIN |
LTC4365IDDB#TRPBF PARAMETRIC INFO
|
LTC4365IDDB#TRPBF PACKAGE INFO
|
LTC4365IDDB#TRPBF MANUFACTURING INFO
|
LTC4365IDDB#TRPBF PACKAGING INFO
|
LTC4365IDDB#TRPBF ECAD MODELS
|
LTC4365IDDB#TRPBF APPLICATIONS
|
|
| COUNTRY OF ORIGIN |
| Thailand |
| Philippines |
|
PARAMETRIC INFO
|
| Category |
Over Voltage Protection Controller |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Input Voltage (V) |
2.5 to 34 |
| Minimum Operating Supply Voltage (V) |
2.5 |
| Maximum Operating Supply Voltage (V) |
34 |
| Maximum Supply Current (mA) |
0.15 |
| Supplier Temperature Grade |
Industrial |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
DFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
No Lead |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
3 |
| Package Width (mm) |
2 |
| Package Height (mm) |
0.75(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.75 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Dual Flat Package No Lead, Exposed Pad |
| Package Family Name |
DFN |
| Jedec |
MO-229 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|

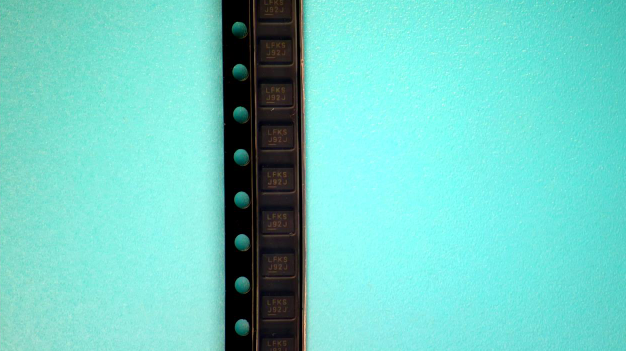

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|

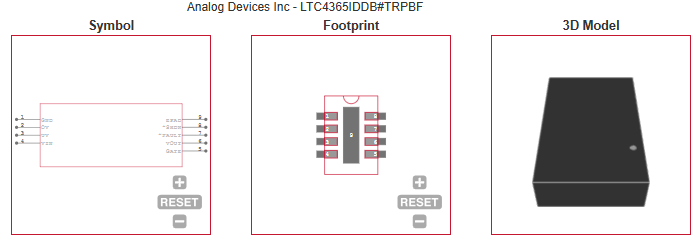

ECAD MODELS
|
|
|
APPLICATIONS
|
• Portable Instrumentation
|
• Industrial Automation
|
| • Laptops |
| • Automotive Surge Protection |
|
| |
