• Pulse Width Modulation (PWM) Controlled by Simple 0V to 1V Analog Input
|
• Frequency Range: 3.81Hz to 1MHz
|
• Configured with 1 to 3 Resistors
|
• <1.7% Maximum Frequency Error
|
• PWM Duty Cycle Error < 3.7% Maximum
|
• Frequency Modulation (VCO) Capability
|
|
| CATALOG |
LTC6992CS6-1#TRMPBF COUNTRY OF ORIGIN
|
LTC6992CS6-1#TRMPBF PARAMETRIC INFO
|
LTC6992CS6-1#TRMPBF PACKAGE INFO
|
LTC6992CS6-1#TRMPBF MANUFACTURING INFO
|
LTC6992CS6-1#TRMPBF PACKAGING INFO
|
LTC6992CS6-1#TRMPBF ECAD MODELS
|
LTC6992CS6-1#TRMPBF APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Silicon Oscillator |
| User Programming Method |
Resistor |
| Standard Frequency Range (MHz) |
0.00000381 to 1 |
| Number of Outputs |
1 |
| Output Level |
CMOS |
| Output Signal Type |
Single-Ended |
| Maximum Frequency Accuracy |
±2.4% |
| Minimum Operating Supply Voltage (V) |
2.25 |
| Typical Operating Supply Voltage (V) |
2.5|3.3|5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Manual Reset |
No |
| Typical Frequency Temperature Coefficient |
±0.005%/°C |
| Typical Frequency Line Regulation |
0.25%/V |
| Maximum Supply Current (mA) |
0.45 |
| Maximum Symmetry (%) |
100(Min) |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
70 |
| Supplier Temperature Grade |
Commercial |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|

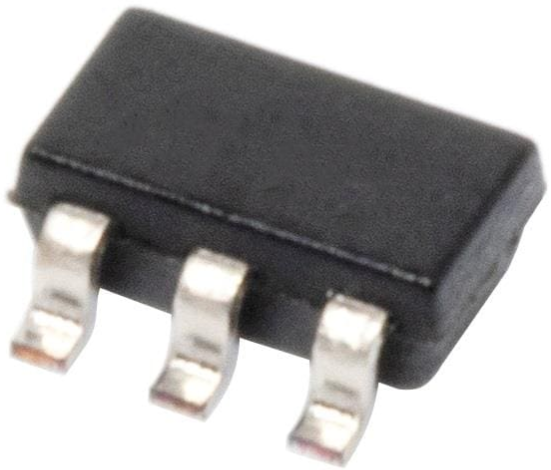

PACKAGE INFO
|
| Supplier Package |
TSOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
0.9(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.9 |
| Package Overall Width (mm) |
2.8 |
| Package Overall Height (mm) |
1(Max) |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-193 |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
12 Month |
| Shelf Life Condition |
40°C+90 % RH |
| Number of Wave Cycles |
2 |
|
|
PACKAGING INFO
|
| Packaging Suffix |
TRM |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
500 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
Q2 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|

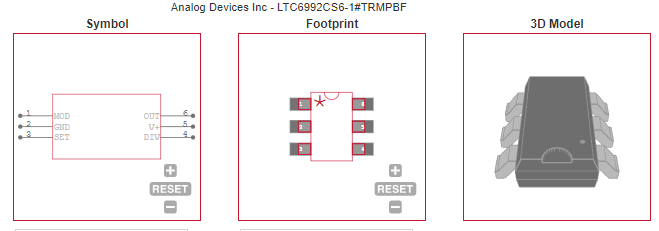

ECAD MODELS
|
|
|
| APPLICATIONS |
| • PWM Servo Loops |
| • Heater Control |
| • LED Dimming Control |
| • High Vibration, High Acceleration Environments |
| • Portable and Battery-Powered Equipment |
| |
