• Pulse Width Range: 1µs to 33.6 Seconds
|
• Configured with 1 to 3 Resistors
|
• Pulse Width Max Error: <2.3% for Pulse Width > 512µs <3.4% for Pulse Width of 8µs to 512µs <4.9% for Pulse Width of 1µs to 8µs
|
| • Four LTC6993 Options Available: Rising-Edge or Falling-Edge Trigger Retriggerable or Non-Retriggerable
|
| • Configurable for Positive or Negative Output Pulse |
| • Fast Recovery Time |
| • Voltage Gain: 140dB (Typ) |
• See TLVH431 and TLVH432 for:– Wider VKA (1.24V to 18 V) and IK (80mA)– Additional SOT-89 package– Multiple pinouts for SOT-23-3 and SOT-89
packages |
| • Four LTC6993 Options Available: Rising-Edge or Falling-Edge Trigger Retriggerable or Non-Retriggerable |
| • Configurable for Positive or Negative Output Pulse |
| • Fast Recovery Time |
| • 2.25V to 5.5V Single Supply Operation |
| • 70µA Supply Current at 10µs Pulse Width |
| • 500µs Start-Up Time |
| • CMOS Output Driver Sources/Sinks 20mA |
| • –55°C to 125°C Operating Temperature Range |
| • Available in Low Profile (1mm) SOT-23 (ThinSOT™)and 2mm × 3mm DFN |
| • AEC-Q100 Qualified for Automotive Applications |
| |
| CATALOG |
| LTC6993CS6-2#TRMPBF COUNTRY OF ORIGIN |
LTC6993CS6-2#TRMPBF PARAMETRIC INFO
|
LTC6993CS6-2#TRMPBF PACKAGE INFO
|
LTC6993CS6-2#TRMPBF MANUFACTURING INFO
|
LTC6993CS6-2#TRMPBF PACKAGING INFO
|
LTC6993CS6-2#TRMPBF EACD MODELS
|
| LTC6993CS6-2#TRMPBF APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Logic Function |
Monostable Multivibrator |
| Number of Elements per Chip |
1 |
| Minimum Operating Supply Voltage (V) |
2.25 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Typical Operating Supply Voltage (V) |
2.5|3.3|5 |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
70 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Maximum High Level Output Current (mA) |
-16 |
| Maximum Low Level Output Current (mA) |
16 |
| Maximum Propagation Delay Time @ Maximum CL (ns) |
28(Typ)@2.25V|17(Typ)@3.3V|11(Typ)@5.5V |
| Absolute Propagation Delay Time (ns) |
28(Typ) |
|
|
PACKAGE INFO
|
| Supplier Package |
TSOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
0.9(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.9 |
| Package Overall Width (mm) |
2.8 |
| Package Overall Height (mm) |
1(Max) |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-193AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|

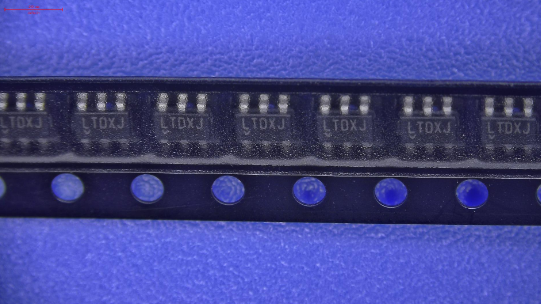

PACKAGING INFO
|
| Packaging Suffix |
TRM |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
500 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
Q2 |
| Packaging Document |
Link to Datasheet |
|
|

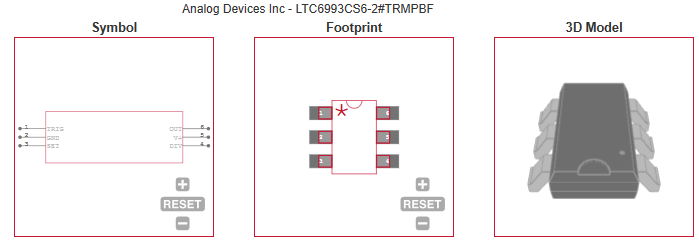

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Watchdog Timer |
| • Frequency Discriminators |
| • Missing Pulse Detection |
| • Envelope Detection |
• High Vibration, High Acceleration Environments
|
| • Portable and Battery-Powered Equipment |
| |
