| • RS232 Transceiver: 2500VRMS for 1 Minute |
| • UL-CSA Recognized File #E151738 |
| • CSA Component Acceptance Notice 5A |
| • Isolated DC Power: 5V at Up to 200mA |
| • No External Components Required |
| • 1.62V to 5.5V Logic Supply for Flexible Digital
Interfacing |
• High Speed Operation
- 1Mbps for 250pF/3kΩ Load
2
- 50kbps for 1nF/3kΩ Load
- 100kbps for 2.5nF/3kΩ TIA/EIA-232-F Load |
| • 3.3V (LTM2882-3) or 5V (LTM2882-5) Operation |
| • No Damage or Latchup to ±10kV HBM ESD on
Isolated RS232 Interface or Across Isolation Barrier |
| • High Common Mode Transient Immunity: 30kV/μs |
| • Maximum Continuous Working Voltage: 560VPEAK |
| • True RS232 Compliant Output Levels |
| • 15mm × 11.25mm BGA and LGA Packages |
|
| CATALOG |
| LTM2882HY-3#PBF COUNTRY OF ORIGIN |
| LTM2882HY-3#PBF PARAMETRIC INFO |
| LTM2882HY-3#PBF PACKAGE INFO |
| LTM2882HY-3#PBF MANUFACTURING INFO |
| LTM2882HY-3#PBF PACKAGING INFO |
| LTM2882HY-3#PBF FUNCTIOAL BLOCK DIAGRAM |
| LTM2882HY-3#PBF APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Korea (Republic of) |
| Malaysia |
|
| PARAMETRIC INFO |
| Function |
Line Transceiver |
| Number of Transceivers |
1 |
| Number of Transmitters |
2 |
| Number of Receivers |
2 |
| Data Transmission Topology |
Point-to-Point |
| Transmitter Signal Type |
Single-Ended |
| Receiver Signal Type |
Single-Ended |
| Transmitter Communication Type |
RS-232 |
| Charge Pump |
Yes |
| Receiver Communication Type |
RS-232 |
| Power Down Mode |
Shutdown |
| Channel Operating Mode |
Half Duplex |
| Interface Standards |
RS-232 |
| Number of Transmitter Enables |
0 |
| Number of Receiver Enables |
0 |
| Number of Drivers per Line |
1 |
| Number of Receivers per Line |
1 |
| Data Rate |
1Mbps(Min) |
| Driving Mode |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-55 |
| Power Supply Type |
Single |
| Typical Single Supply Voltage (V) |
3.3 |
| Minimum Single Supply Voltage (V) |
3 |
| Maximum Single Supply Voltage (V) |
3.6 |
| Maximum Supply Current (mA) |
30 |
|
| |
| PACKAGE INFO |
| Supplier Package |
BGA |
| Basic Package Type |
Ball Grid Array |
| Pin Count |
32 |
| Lead Shape |
Ball |
| PCB |
32 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
15 |
| Package Width (mm) |
11.25 |
| Package Height (mm) |
2.82 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
15 |
| Package Overall Width (mm) |
11.25 |
| Package Overall Height (mm) |
3.42 |
| Seated Plane Height (mm) |
3.42 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Ball Grid Array |
| Package Family Name |
BGA |
| Jedec |
N/A |
|
| |
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
SnAgCu |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
| |
| PACKAGING INFO |
| Packaging |
Tray |
| Quantity Of Packaging |
119 |
|
| |

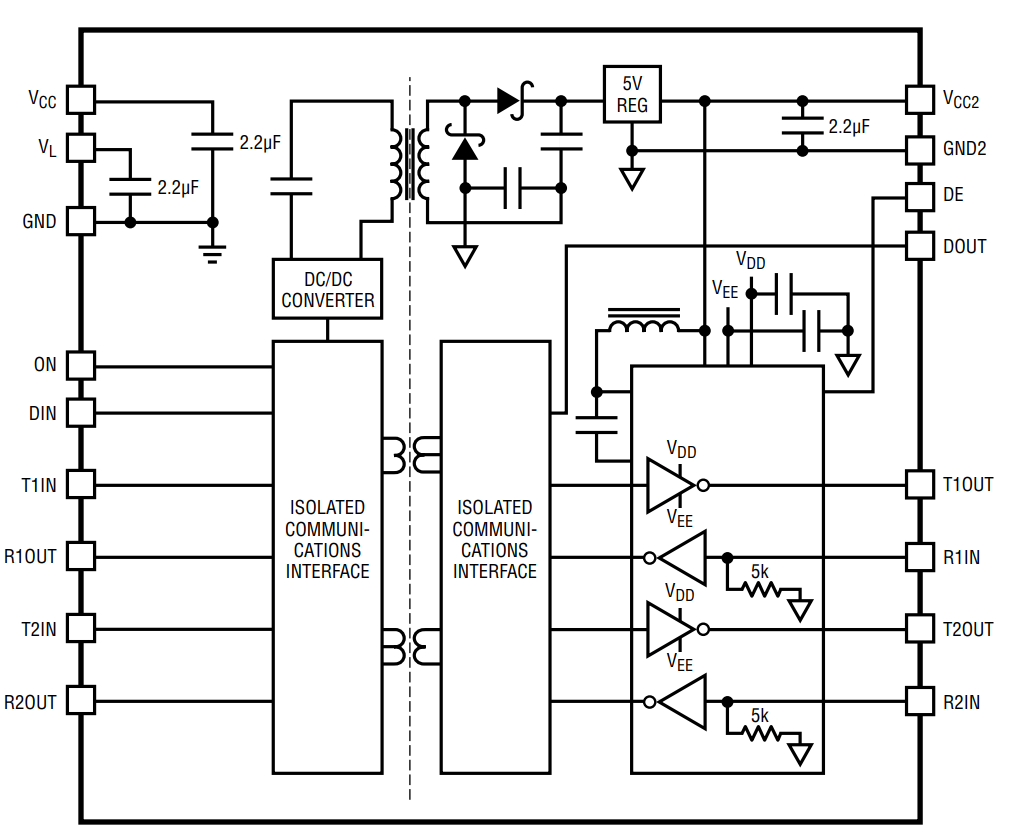

| FUNCTIOAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • Isolated RS232 Interface |
| • Industrial Communication |
| • Test and Measurement Equipment |
| • Breaking RS232 Ground Loops |
| |
|
