• Complete Standalone Dual Power Supply
|
• Single 16A or Dual 8A Output
|
• Wide Input Voltage Range: 4.5V to 26.5V
|
• Output Voltage Range: 0.6V to 5.5V
|
• ±1.5% Total DC Output Error
|
• Differential Remote Sense Amplifier
|
• Current Mode Control/Fast Transient Response
|
• Adjustable Switching Frequency
|
• Overcurrent Foldback Protection
|
• Multiphase Parallel Current Sharing with Multiple LTM4628s
|
|
| CATALOG |
LTM4628IY#PBF COUNTRY OF ORIGIN
|
LTM4628IY#PBF PARAMETRIC INFO
|
LTM4628IY#PBF PACKAGE INFO
|
LTM4628IY#PBF MANUFACTURING INFO
|
LTM4628IY#PBF PACKAGING INFO
|
LTM4628IY#PBF ECAD MODELS
|
LTM4628IY#PBF APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Korea (Republic of)
|
Malaysia
|
|
PARAMETRIC INFO
|
| Isolation |
Non-Isolated |
| Type |
Step Down |
| Number of Outputs |
2 |
| Output Voltage (V) |
0.6 to 5.5 |
| Maximum Output Current (A) |
8|8 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Industrial |
| Switching Regulator |
Yes |
| Minimum Input Voltage (V) |
4.5 |
| Maximum Input Voltage (V) |
26.5 |
| Output Type |
Adjustable |
| Load Regulation |
0.3% |
| Line Regulation |
0.04%/V |
| Switching Frequency (kHz) |
780(Typ) |
| Typical Standby Current (mA) |
0.06 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
125 |
| On/Off Logic |
Positive |
|
|

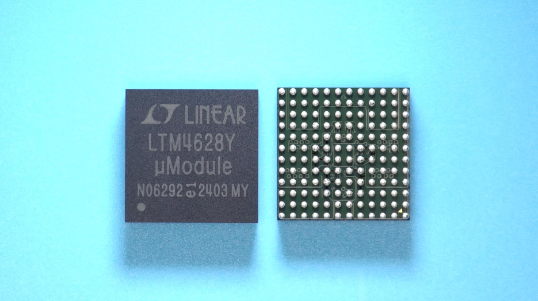

PACKAGE INFO
|
| Supplier Package |
BGA |
| Basic Package Type |
Ball Grid Array |
| Pin Count |
144 |
| Lead Shape |
Ball |
| PCB |
144 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
15 |
| Package Width (mm) |
15 |
| Package Height (mm) |
4.32 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
4.92 |
| Mounting |
Surface Mount |
| Package Weight (g) |
2.9 |
| Package Material |
Plastic |
| Package Description |
Plastic Ball Grid Array |
| Package Family Name |
BGA |
| Jedec |
MS-028 |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
SnAgCu |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
119 |
|
|

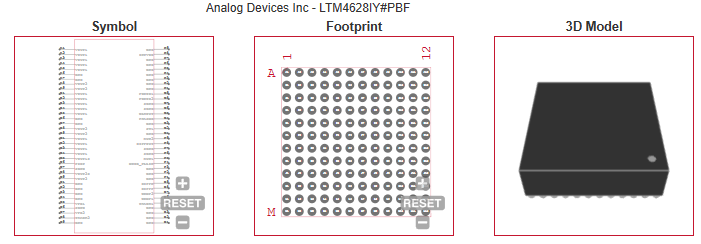

| ECDA MODELS |
|
|
| APPLICATIONS |
• Telecom and Networking Equipment
|
• Storage and ATCA Cards
|
• Industrial Equipment
|
| |
