LV8548MC-AH COUNTRY OF ORIGIN
|
LV8548MC-AH PARAMETRIC INFO
|
LV8548MC-AH PACKAGE INFO
|
LV8548MC-AH MANUFACTURING INFO
|
LV8548MC-AH PACKAGING INFO
|

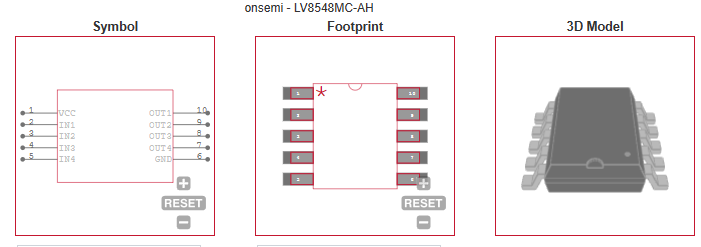

LV8548MC-AH ECAD MODLES
|
|
COUNTRY OF ORIGIN
|
Philippines
|
|
PARAMETRIC INFO
|
| Type |
Motor Driver |
| Maximum Operating Current (mA) |
2.3 |
| Minimum Operating Temperature (°C) |
-30 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Supply Voltage (V) |
4 |
| Operating Supply Voltage (V) |
4 to 16 |
| Maximum Operating Supply Voltage (V) |
16 |
| Maximum Power Dissipation (mW) |
1000 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
150 |
| Motor Type |
DC Motor |
| Number of Phases |
2 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
10 |
| Lead Shape |
Gull-wing |
| PCB |
10 |
| Tab |
N/R |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4.4(Max) |
| Package Height (mm) |
1.75(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 to 6 |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
CuFeAgZn |
| Number of Wave Cycles |
2 |
|
|

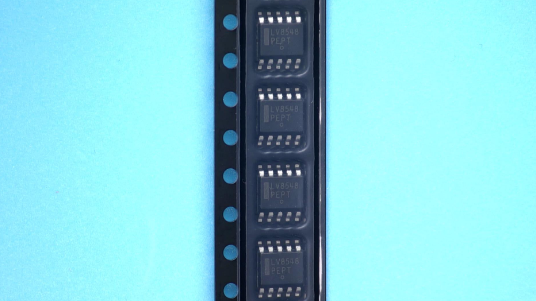

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Packaging Document |
Link to Datasheet |
|
|
| ECDA MODLES |
|
|
