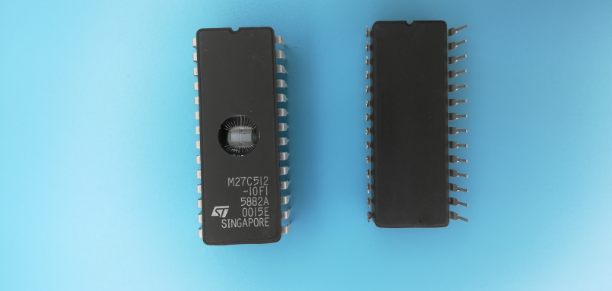

M27C512-10F1 STMicroelectronics IC EPROM 512K PARALLEL 28CDIP

label:
2023/10/18 312



CATALOG
M27C512-10F1 COUNTRY OF ORIGIN
M27C512-10F1 PARAMETRIC INFO
M27C512-10F1 PACKAGE INFO
M27C512-10F1 MANUFACTURING INFO
M27C512-10F1 PACKAGING INFO
M27C512-10F1 ECAD MODELS


COUNTRY OF ORIGIN
China
India
Korea (Republic of)
Malaysia
Morocco
Philippines
Singapore


PARAMETRIC INFO
Density (bit) 512K
Interface Type Parallel
Maximum Access Time (ns) 100
Typical Operating Supply Voltage (V) 5
Reprogramming Technique UV
In-System Programmability In System|External
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 70
Programmability Yes
Supplier Temperature Grade Commercial
Density in Bits (bit) 524288
Maximum Operating Current (mA) 50
Programming Voltage (V) 12.5 to 13
Organization 64Kx8
Output Enable Access Time (ns) 40
Minimum Operating Supply Voltage (V) 4.5
Maximum Operating Supply Voltage (V) 5.5
Minimum Storage Temperature (°C) -65
Maximum Storage Temperature (°C) 150
Operating Supply Voltage (V) 5
Process Technology CMOS


PACKAGE INFO
Supplier Package CFDIPW
Basic Package Type Through Hole
Pin Count 28
Lead Shape Through Hole
PCB 28
Tab N/R
Pin Pitch (mm) 2.54
Package Length (mm) 37.34(Max)
Package Width (mm) 13.36(Max)
Package Height (mm) 4.5(Max)
Package Diameter (mm) N/R
Seated Plane Height (mm) 5.72(Max)
Mounting Through Hole
Package Weight (g) N/A
Package Material Ceramic
Package Description Ceramic Frit Seal Dual In Line Package With Window
Package Family Name DIP
Jedec N/A


MANUFACTURING INFO
MSL N/R
Maximum Reflow Temperature (°C) N/R
Reflow Solder Time (Sec) N/R
Number of Reflow Cycle N/R
Standard N/R
Maximum Wave Temperature (°C) 260
Wave Solder Time (Sec) 10
Wave Temp. Source Link to Datasheet
Lead Finish(Plating) Matte Sn annealed
Under Plating Material N/A
Terminal Base Material Alloy 42
Shelf Life Period 2 Years
Number of Wave Cycles 2


PACKAGING INFO
Packaging Document Link to Datasheet

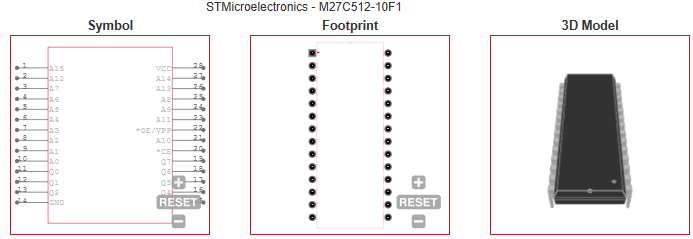

ECAD MODELS
