• 350 nA timekeeping current at 3 V
|
• Time keeping down to 1.0 V
|
• 1.3 V to 4.4 V I²C bus operating voltage
– 4.4 V max. VCC suitable for lithium-ion battery operation
|
• Low operating current of 35 µA (at 400 kHz I²C speed)
|
• 32 kHz square wave output is on at power-up. Suitable for driving a
microcontroller in low-power mode. Can be disabled. (M41T62/64)
|
• Programmable 1 Hz to 32 kHz square wave output (M41T62/64)
|
• Programmable alarm with interrupt function (M41T62/65)
|
• 32 kHz crystal oscillator integrates crystal load capacitors, works with high
series resistance crystals
|
|
| CATALOG |
M41T62Q6F COUNTRY OF ORIGIN
|
M41T62Q6F LIFECYCLE
|
M41T62Q6F PARAMETRIC INFO
|
M41T62Q6F PACKAGE INFO
|
M41T62Q6F MANUFACTURING INFO
|
M41T62Q6F PACKAGING INFO
|
M41T62Q6F ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
Malaysia
|
United States of America
|
|
LIFECYCLE
|
Obsolete
Jul 10,2022
|
|
PARAMETRIC INFO
|
| Date Format |
DW:DM:M:Y |
| Time Format |
HH:MM:SS:hh |
| User RAM (byte) |
16 |
| Bus Type |
Serial (2-Wire, I2C) |
| Function |
Clock/Calendar/Alarm/Timer/Interrupt |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Minimum Operating Supply Voltage (V) |
1.3 |
| Typical Operating Supply Voltage (V) |
1.8|2.5|3.3 |
| Maximum Operating Supply Voltage (V) |
4.4 |
| Maximum Power Dissipation (mW) |
1000 |
|
|
PACKAGE INFO
|
| Supplier Package |
QFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
No Lead |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
3 |
| Package Width (mm) |
3 |
| Package Height (mm) |
0.88 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.9 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
N/R |
|
|

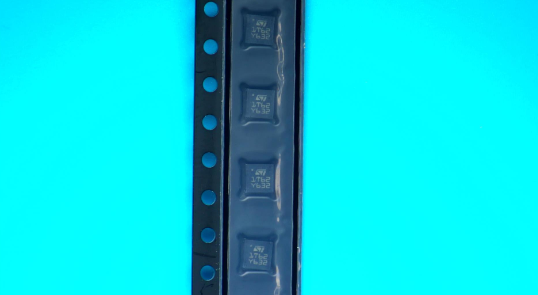

PACKAGING INFO
|
| Packaging Suffix |
F |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

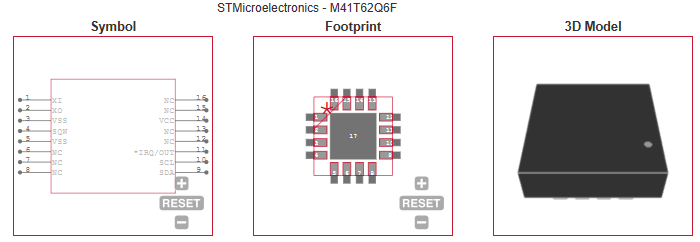

ECAD MODELS
|
|
|
