• Integrated, ultra low power SRAM, real-time
clock, power-fail control circuit and battery
|
• BYTEWIDE™ RAM-like clock access
|
• BCD coded year, month, day, date, hours,
minutes, and seconds
|
• Frequency test output for real-time clock
|
• Automatic power-fail chip deselect and WRITE
protection
|
• WRITE protect voltages
VPFD = power-fail deselect voltage):
– M48T35: VCC = 4.75 to 5.5 V;
4.5 V ≤ VPFD ≤ 4.75 V
– M48T35Y: VCC = 4.5 to 5.5 V;
4.2 V ≤ VPFD ≤ 4.5 V
|
• Self-contained battery and crystal in the
CAPHAT™ DIP package
|
• SOIC package provides direct connection for a
SNAPHAT® housing containing the battery and
crystal
|
• SNAPHAT® housing (battery and crystal) is
replaceable
|
|
| CATALOG |
M48T35Y-70MH1F COUNTRY OF ORIGIN
|
M48T35Y-70MH1F PARAMETRIC INFO
|
M48T35Y-70MH1F PACKAGE INFO
|
M48T35Y-70MH1F MANUFACTURING INFO
|
M48T35Y-70MH1F PACKAGING INFO
|
M48T35Y-70MH1F ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Date Format |
DW:DM:M:Y |
| Time Format |
HH:MM:SS |
| User RAM (byte) |
256 |
| Bus Type |
Parallel |
| Function |
Clock/Calendar/NV Timekeeping RAM/Watchdog Timer/Battery Backup |
| Maximum Access Time (ns) |
70 |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
70 |
| Supplier Temperature Grade |
Commercial |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
85 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Power Dissipation (mW) |
1000 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOH |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
Gull-wing |
| PCB |
28 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
18.49(Max) |
| Package Width (mm) |
8.89(Max) |
| Package Height (mm) |
2.69(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
3.05(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
N/R |
|
|

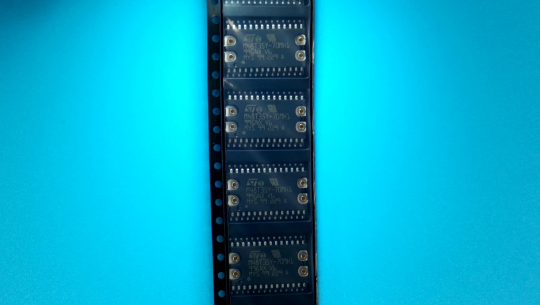

PACKAGING INFO
|
| Packaging Suffix |
F |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
600 |
| Reel Diameter (in) |
13(Max) |
| Reel Width (mm) |
24.4 |
| Tape Pitch (mm) |
16 |
| Tape Width (mm) |
24 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Packaging Document |
Link to Datasheet |
|
|

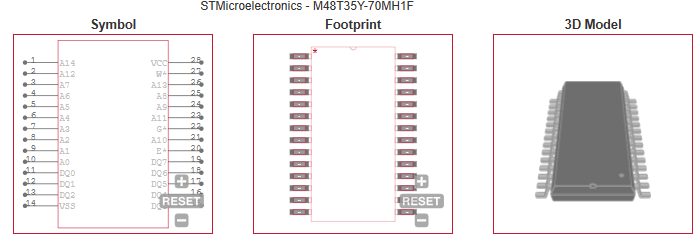

ECAD MODELS
|
|
| |
