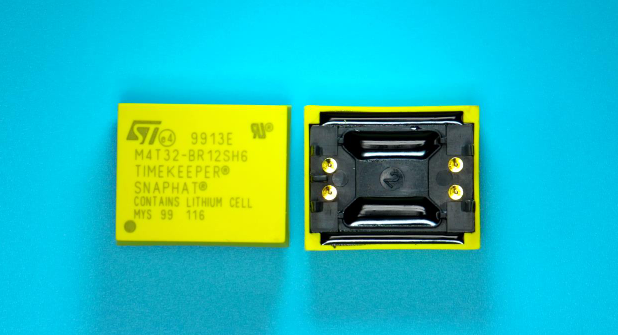

• Provides battery backup power for serial realtime clock, non-volatile TIMEKEEPER® and
supervisor devices in the 28- or 44-pin
SNAPHAT® SOIC package
|
• Removable battery avoids heat associated with
surface-mount process
|
• Snaps directly onto surface-mounted
SNAPHAT SOIC
|
• Choice of battery capacities
– M4T28-BR12SH = 48 mAh
– M4T32-BR12SH = 120 mAh
|
• Keyed insertion to ensure proper assembly
|
• Removable for replacement and proper
disposal
|
• Pb-free package
|
• Available in Ecopack® packages, tubes
|
|
| CATALOG |
M4T32-BR12SH6 COUNTRY OF ORIGIN
|
M4T32-BR12SH6 PARAMETRIC INFO
|
M4T32-BR12SH6 PACKAGE INFO
|
M4T32-BR12SH6 MANUFACTURING INFO
|
M4T32-BR12SH6 PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Category |
Detachable Lithium Power Source |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Typical Operating Supply Voltage (V) |
2.8 |
| Switching Frequency (kHz) |
32.768 |
| Supplier Temperature Grade |
Industrial |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
85 |
|
|
PACKAGE INFO
|
| Supplier Package |
SNAPHAT |
| Pin Count |
4 |
| PCB |
4 |
| Tab |
N/R |
| Pin Pitch (mm) |
15.95(Max)|3.61(Max) |
| Package Length (mm) |
21.84(Max) |
| Package Width (mm) |
14.99(Max) |
| Package Height (mm) |
6.99(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Through Hole |
| Package Material |
Plastic |
| Package Family Name |
SNAPHAT |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
2 |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
23 |
| Packaging Document |
Link to Datasheet |
|
|
