• Long useful life: 2500 h to 8000 h at 85 °C
|
• Miniaturized, high CV-product per unit volume
|
• Charge and discharge proof
|

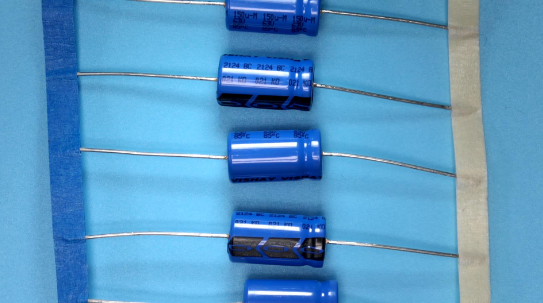

• Taped versions up to case Ø 15 mm x 30 mm available for automatic insertion
|
• Polarized aluminum electrolytic capacitors, non-solid electrolyte
|
• Axial leads, cylindrical aluminum case, insulated with a blue sleeve
|
• Mounting ring version not available in insulated form
|
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
|
|
| CATALOG |
MAL202128151E3 COUNTRY OF ORIGIN
|
MAL202128151E3 PARAMETRIC INFO
|
MAL202128151E3 PACKAGE INFO
|
MAL202128151E3 MANUFACTURING INFO
|
MAL202128151E3 PACKAGING INFO
|
MAL202128151E3 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Austria
|
|
PARAMETRIC INFO
|
| Capacitance Value |
150uF |
| Voltage |
63VDC |
| Tolerance |
20% |
| Ripple Current (mA) |
320 |
| Leakage Current (uA) |
23@5Min |
| Equivalent Series Resistance (Ohm) |
0.85 |
| Lifetime (h) |
2500 |
| Polarity |
Polar |
| Maximum Impedance (Ohm) |
0.37@20°C@10kHz |
| Maximum Operating Temperature (°C) |
85 |
| Type |
Electrolytic |
| Operating Temperature (°C) |
-40 to 85 |
| Minimum Operating Temperature (°C) |
-40 |
| Lead Diameter (mm) |
0.8 |
| Equivalent Series Resistance Type |
Standard |
| DC Rated Voltage (VDC) |
63 |
| Negative Capacitance Tolerance (%) |
-20 |
| Positive Capacitance Tolerance (%) |
20 |
| Maximum Dissipation Factor (%) |
8 |
| Equivalent Series Inductance (nH) |
61 |
| Fixed/Variable |
Fixed |
|
|
PACKAGE INFO
|
| Mounting |
Through Hole |
| Termination Style |
Axial |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
18 |
| Product Depth (mm) |
N/R |
| Product Height (mm) |
N/R |
| Product Diameter (mm) |
10 |
| Seated Plane Height (mm) |
N/R |
| Product Weight (g) |
2.5 |
| Number of Terminals |
2 |
| Size (mm) |
10 X 18 |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
CuSn |
| Terminal Base Material |
Cu |
| Shelf Life Period |
500 Hours |
| Shelf Life Condition |
0V+85°C |
|
|
PACKAGING INFO
|
|
|
|
APPLICATIONS
|
• General purpose, industrial, automotive, audio-video
|
• Coupling, decoupling, smoothing, filtering, buffering
|
• Portable and mobile equipment (small size, low mass)
|
• Low mounting height boards, vibration, and shock resistant
|
|
