• Consumes 1/10th the Power of the DS1232
|
• Precision Voltage Monitor—Adjustable +4.5V or+4.75V
|
• Power-OK/Reset Pulse Width—250ms Min
|
• No External Components
|
• Adjustable Watchdog Timer—150ms, 600ms, or 1.2s
|
• Debounced Manual Reset Input for External Override
|
• Available in 8-Pin PDIP/SO and 16-Pin Wide SO Packages
|
|
| CATALOG |
| MAX1232ESA+T COUNTRY OF ORIGIN |
MAX1232ESA+T PARAMETRIC INFO
|
MAX1232ESA+T PACKAGE INFO
|
MAX1232ESA+T MANUFACTURING INFO
|
MAX1232ESA+T PACKAGING INFO
|
MAX1232ESA+T ECAD MODELS
|
MAX1232ESA+T APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
Philippines
|
Taiwan (Province of China)
|
Thailand
|
|
PARAMETRIC INFO
|
| Output Driver |
Active High/Active Low/Open Drain |
| Manual Reset |
Yes |
| Watchdog Timer |
Yes |
| Number of Supervisors |
1 |
| Typical Reset Threshold Voltage (V) |
4.62 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Chip Enable Signals |
No |
| Power Fail Detection |
No |
| Battery Backup Switching |
No |
| Maximum Reset Active Time (ms) |
1000 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Reset Threshold Voltage (V) |
4.5|4.25 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Reset Threshold Voltage (V) |
4.74|4.49 |
| Monitored Voltage (V) |
4.5|4.75 |
| Maximum Supply Current (uA) |
200 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
160 |
| Type |
Voltage Monitor |
| Programmability |
Yes |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
4.9 |
| Package Width (mm) |
3.9 |
| Package Height (mm) |
1.37 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
4.9 |
| Package Overall Width (mm) |
6 |
| Package Overall Height (mm) |
1.55 |
| Seated Plane Height (mm) |
1.55 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu 194 |
| Number of Wave Cycles |
N/A |
|
|

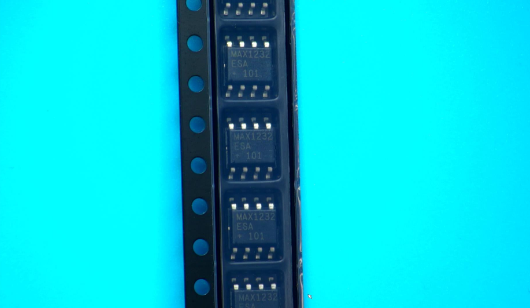

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|

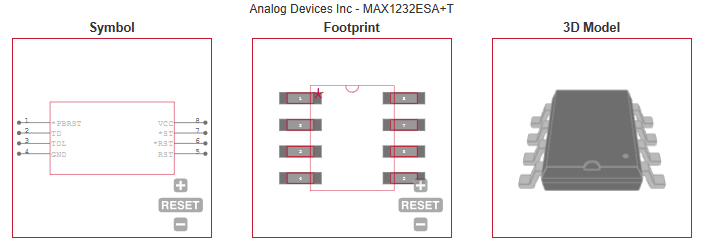

ECAD MODELS
|
|
|
APPLICATIONS
|
• Computers
|
• Controllers
|
• Intelligent Instruments
|
• Critical μP Power Monitoring
|
|
