• Eliminates External Components and Reduces Total Cost
|
• Reduces Number of DC-DC Regulators to Stock
|
• Reduces Power Dissipation
|
• Operates Reliably in Adverse Industrial Environments
|
|
| CATALOG |
MAX15062BATA+T COUNTRY OF ORIGIN
|
MAX15062BATA+T PARAMETRIC INFO
|
MAX15062BATA+T PACKAGE INFO
|
MAX15062BATA+T MANUFACTURING INFO
|
MAX15062BATA+T PACKAGING INFO
|

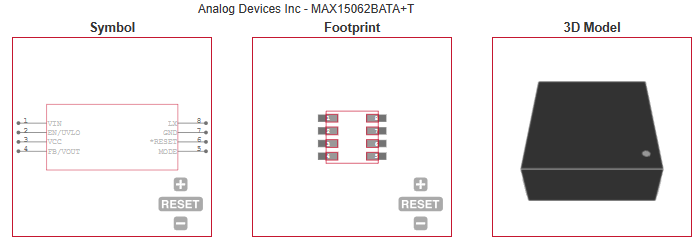

MAX15062BATA+T ECAD MODELS
|
MAX15062BATA+T APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
|
PARAMETRIC INFO
|
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4.5 |
| Maximum Input Voltage (V) |
60 |
| Output Voltage (V) |
5 |
| Maximum Output Current (A) |
0.3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Automotive |
| Switching Frequency (kHz) |
465 to 535 |
| Efficiency (%) |
92 |
| Switching Regulator |
Yes |
| Output Type |
Fixed |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
TDFN |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
No Lead |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
2 |
| Package Width (mm) |
2 |
| Package Height (mm) |
0.75(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2 |
| Package Overall Width (mm) |
2 |
| Package Overall Height (mm) |
0.75 |
| Seated Plane Height (mm) |
0.75 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Family Name |
DFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Packaging Document |
Link to Datasheet |
|
|
| ECAD MODELS |
|
|
APPLICATIONS
|
• Process Control
|
• Industrial Sensors
|
• 4–20mA Current Loops
|
• HVAC and Building Control
|
• High-Voltage LDO Replacement
|
• General-Purpose Point-of-Load
|
|
