● Low 7μA Operating Current
|
● Supports Li+ and Variants Including LiFePO4
|
● ±1°C Internal Temperature or Thermistor
|
● Dynamic Power Estimates Power Capability During Dischargecharge
|
● Predicts Remaining Capacity Under Theoretical Load
|
|
| CATALOG |
MAX17055EWL+T COUNTRY OF ORIGIN
|
MAX17055EWL+T PARAMETRIC INFO
|
MAX17055EWL+T PACKAGE INFO
|
MAX17055EWL+T MANUFACTURING INFO
|
MAX17055EWL+T PACKAGING INFO
|
MAX17055EWL+T ECAD MODELS
|
MAX17055EWL+T APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
United States of America
|
|
PARAMETRIC INFO
|
| Type |
Fuel Gauge |
| Battery Type |
Li-FePO4|Li-Ion |
| Output Voltage (V) |
1.8 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Supply Voltage (V) |
2.3 |
| Operating Supply Voltage Range (V) |
2.3 to 4.9 |
| Maximum Operating Supply Voltage (V) |
4.9 |
| Maximum Supply Current (mA) |
0.018(Typ) |
| Process Technology |
BiCMOS |
|
|
PACKAGE INFO
|
| Supplier Package |
WLP |
| Basic Package Type |
Ball Grid Array |
| Pin Count |
9 |
| Lead Shape |
Ball |
| PCB |
9 |
| Tab |
N/R |
| Package Length (mm) |
1.5 |
| Package Width (mm) |
1.41 |
| Package Height (mm) |
0.45 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Wafer Level Package |
| Package Family Name |
WLP |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
SnAgCuNi |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
|
|

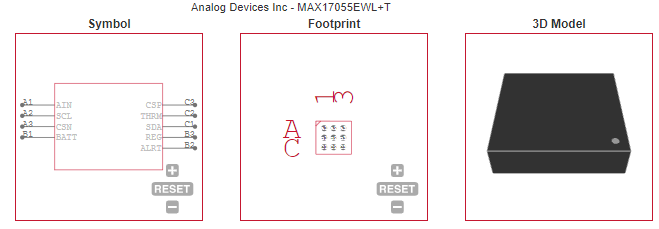

ECAD MODELS
|
|
|
| APPLICATIONS |
| ● Wearables, Smartwatches |
| ● Smartphones |
| ● Tablets, 2-in-1 Laptops |
| ● Bluetooth Headsets |
| ● Health and Fitness Monitors |
| ● Digital Still, Video, and Action Cameras |
| ● Medical Devices |
| ● Handheld Computers and Terminals |
| ● Wireless Speakers |
| ● Home and Building Automation, Sensors |
| ● Portable Game Players |
| ● Toys |
| |
| |
