• 30mA Output Current
|
• Low 15Ω Output Resistance
|
• 68µA Supply Current (MAX1852)
|
• Requires Only Two 0.68µF Capacitors (MAX1853)
|
• +2.5V to +5.5V Input Voltage Range
|
|
| CATALOG |
MAX1853EXT+T COUNTRY OF ORIGIN
|
MAX1853EXT+T PARAMETRIC INFO
|
MAX1853EXT+T PACKAGE INFO
|
MAX1853EXT+T MANUFACTURING INFO
|
MAX1853EXT+T PACKAGING INFO
|
MAX1853EXT+T ECAD MODELS
|
MAX1853EXT+T APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
|
PARAMETRIC INFO
|
| Function |
Inverting |
| Efficiency (%) |
99.9(Typ) |
| Minimum Operating Supply Voltage (V) |
2.5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Output Voltage (V) |
-2.5 to -5.5 |
| Maximum Supply Current (mA) |
0.32 |
| Output Type |
Adjustable |
| Output Current (mA) |
30(Max) |
| Maximum Switching Frequency (kHz) |
270 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Power Dissipation (mW) |
245 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SC-70 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
2.2(Max) |
| Package Width (mm) |
1.35(Max) |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Preplated Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu C194 |
|
|
PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
7|13 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q2 |
| Packaging Document |
Link to Datasheet |
|
| |

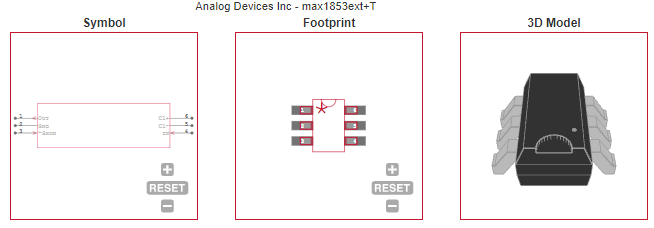

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Negative Supply from +5V or +3.3V Logic Supplies |
| • Small LCD Panels |
| • GaAsFET Bias Supplies |
| • Handy-Terminals, PDAs |
| • Battery-Operated Equipment |
| |
