• Isolation Breaks Ground Loops Due to High CommonMode Voltages While Maintaining Data Rate
• ±50V Isolation
• 250kbps Guaranteed Data Rate
• FAULT Output Signals Excessive Isolated-Side
Voltage |
• Integration of Isolation and RS-232 Saves Space
• SSOP Package |
• Shutdown Allows Multiple Interfaces (IrDA, RS-232,
RS-485) to be Connected to the Same UART
• High-Impedance Transmitter and Receiver
Outputs in Shutdown
• 20µA Supply Current in Shutdown |
| • Inductorless/Transformerless Design Simplifies EMI
Compliance |
| • Low-Cost Replacement for Opto-Isolated
Transceivers |
| • Meets EIA/TIA-232 Specifications Down to 3.0V |
|
| CATALOG |
| MAX3250CAI+ COUNTRY OF ORIGIN |
| MAX3250CAI+ PARAMETRIC INFO |
| MAX3250CAI+ PACKAGE INFO |
| MAX3250CAI+ MANUFACTURING INFO |
| MAX3250CAI+ PACKAGING INFO |
| MAX3250CAI+ ECAD MODELS |
| MAX3250CAI+ APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
| Malaysia |
|
| PARAMETRIC INFO |
| Function |
Line Transceiver |
| Number of Transceivers |
1 |
| Number of Transmitters |
2 |
| Number of Receivers |
2 |
| Data Transmission Topology |
Point-to-Point |
| Transmitter Signal Type |
Single-Ended |
| Receiver Signal Type |
Single-Ended |
| Transmitter Communication Type |
RS-232 |
| Charge Pump |
Yes |
| Input Logic Level |
TTL|CMOS |
| Output Logic Level |
TTL|CMOS |
| Receiver Communication Type |
RS-232 |
| Power Down Mode |
Shutdown |
| Typical Shutdown Current (uA) |
20 |
| Channel Operating Mode |
Full Duplex |
| Interface Standards |
EIA/TIA-232-F|RS-232|V.24|V.28 |
| Number of Transmitter Enables |
0 |
| Number of Receiver Enables |
0 |
| Number of Drivers per Line |
1 |
| Number of Receivers per Line |
1 |
| Data Rate |
250Kbps(Min) |
| Driving Mode |
No |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
70 |
| Supplier Temperature Grade |
Commercial |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Power Supply Type |
Single |
| Typical Single Supply Voltage (V) |
3.3|5 |
| Minimum Single Supply Voltage (V) |
3 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
35 |
|

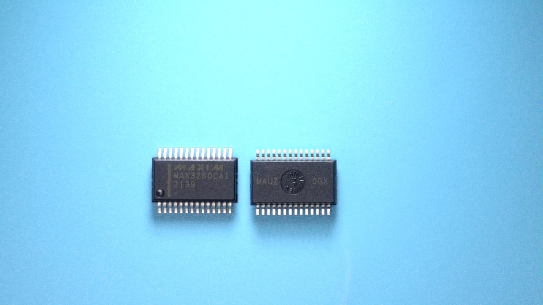

| |
| PACKAGE INFO |
| Supplier Package |
SSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
Gull-wing |
| PCB |
28 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
10.33(Max) |
| Package Width (mm) |
5.38(Max) |
| Package Height (mm) |
1.78(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.99(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Shrink Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-150AH |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu C194 |
| Number of Wave Cycles |
N/R |
|
| |
| PACKAGING INFO |
| Packaging |
Tube |
| Quantity Of Packaging |
46 |
|
| |

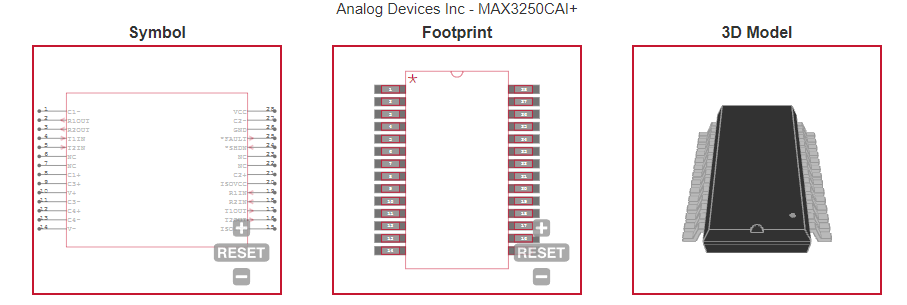

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Industrial Control |
| • Programmable Logic Controller |
| • Point-of-Sale Equipment |
| • PC-to-Router Connections |
| • Diagnostic Ports |
| • Telecom Equipment |
| |
|
