MAX5026EUT+T COUNTRY OF ORIGIN
|
MAX5026EUT+T PARAMETRIC INFO
|
MAX5026EUT+T PACKAGE INFO
|
MAX5026EUT+T MANUFACTURING INFO
|
MAX5026EUT+T PACKAGING INFO
|

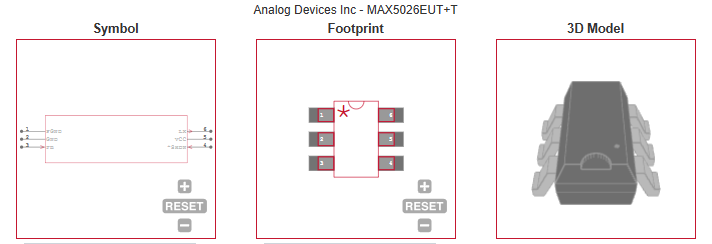

MAX5026EUT+T ECAD MODELS
|
| |
COUNTRY OF ORIGIN
|
Malaysia
|
Philippines
|
Thailand
|
United States of America
|
| |
PARAMETRIC INFO
|
| Isolation |
Isolated |
| type |
Step Up |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
3 |
| Maximum Input Voltage (V) |
11 |
| Output Voltage (V) |
3 to 36 |
| Maximum Output Power (W) |
0.12 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Extended |
| Switching Frequency (kHz) |
500(Typ) |
| Switching Regulator |
是 |
| Operating Supply Voltage (V) |
3 to 11 |
| Output Type |
Adjustable |
| Load Regulation |
1%(Typ) |
| Line Regulation |
0.25%/V(Typ) |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
165 |
| Typical Switch Current (A) |
0.26 |
|
| |
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.63 |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.9 |
| Package Overall Width (mm) |
2.8 |
| Package Overall Height (mm) |
1.25 |
| Seated Plane Height (mm) |
1.25 |
| Mounting |
Surface Mount |
| Package Weight (g) |
不适用 |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| JEDEC |
MO-178AB |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| standard |
J-STD-020D |
| Wave Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Preplated Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu C194 |
| Number of Wave Cycles |
N/R |
|
| |
PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q2 |
| Packaging Document |
Link to Datasheet |
|
| |
| ECAD MODELS |
|
|
|
