• 32 Tap Positions
|
• 50kΩ, 100kΩ, and 200kΩ Resistance Values
|
• 400Ω Wiper Resistance
|
| • ±25% Resistance Tolerance |
| • 3-Wire Serial Data Input |
| • ±1LSB DNL |
| • ±0.5LSB INL |
| • 100nA Supply Current |
| • +2.7V to +5.5V Single-Supply Operation |
| • Power-On Reset: Wiper Goes to Midscale (position 16) |
| • ±2kV ESD Protection |
| • Small-Footprint Packages 6-Pin SOT23 (MAX5161) 8-Pin µMAX (MAX5160) |
| • Glitchless Switching Between the Resistor Taps |
| |
| CATALOG |
MAX5160LEUA+T PARAMETRIC INFO
|
MAX5160LEUA+T PACKAGE INFO
|
MAX5160LEUA+T MANUFACTURING INFO
|
MAX5160LEUA+T PACKAGING INFO
|
MAX5160LEUA+T EACD MODELS
|
| MAX5160LEUA+T FUNCTIONAL DIAGRAM |
| MAX5160LEUA+T APPLICATIONS |
| |
PARAMETRIC INFO
|
| Resistance Value (KOhm) |
50 |
| Number of Positions |
32 |
| Number of Pot per Package |
1 |
| Memory Type |
Volatile |
| Taper Type |
Linear |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Extended Industrial |
| Process Technology |
BiCMOS |
| Power Supply Type |
Single |
| Maximum Single Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
0.0006(Typ) |
| Minimum Single Supply Voltage (V) |
2.7 |
| Typical Single Supply Voltage (V) |
5 |
| Control Interface |
Serial (3-Wire) |
|
|
PACKAGE INFO
|
| Supplier Package |
uMAX |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
3.1(Max) |
| Package Width (mm) |
3.1(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.1(Max) |
| Package Overall Width (mm) |
5.03(Max) |
| Package Overall Height (mm) |
1.1(Max) |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Micro Small Outline Package |
| Package Family Name |
SOP |
| Jedec |
MO-187AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu C7025 |
| Number of Wave Cycles |
N/R |
|
|

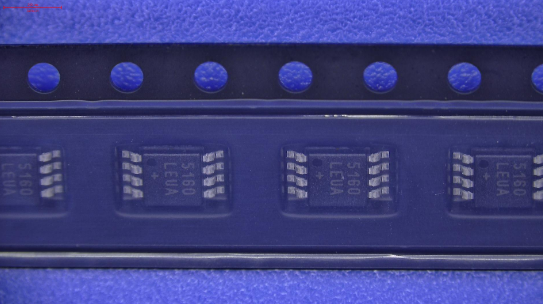

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
|
|

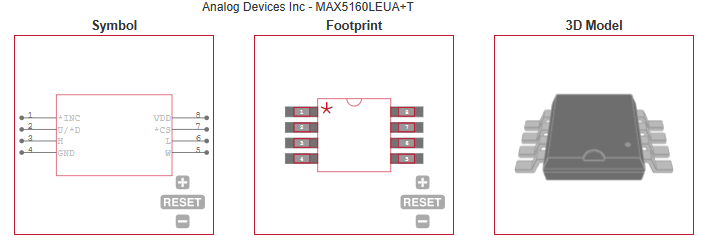

ECAD MODELS
|
|

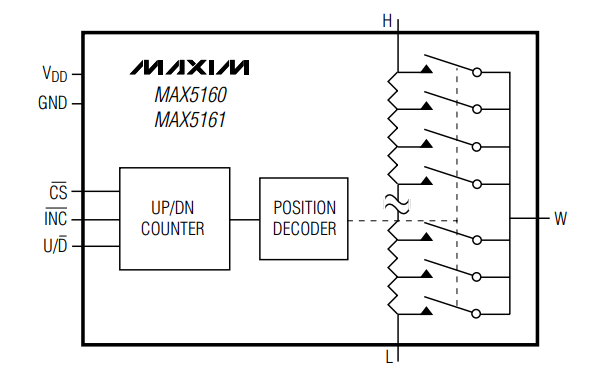

| FUNCTIONAL DIAGRAM |
 |
| |
| APPLICATIONS |
| • LCD Screen Adjustment |
| • Volume Control |
| • Mechanical Potentiometer Replacement |
| |
