• Wiper Position Stored in Nonvolatile Memory and
Recalled Upon Power-Up
|
• Tiny SOT23 Package
|
• 35ppm/°C End-to-End Resistance Temperature
Coefficient
|
• 5ppm/°C Ratiometric Temperature Coefficient
|
• 32 Tap Positions
|
• Voltage-Divider or Variable-Resistor
Potentiometer Configuration
|
|
| CATALOG |
| MAX5472EZT+T COUNTRY OF ORIGIN |
MAX5472EZT+T PARAMETRIC INFO
|
MAX5472EZT+T PACKAGE INFO
|
MAX5472EZT+T MANUFACTURING INFO
|
MAX5472EZT+T PACKAGING INFO
|
MAX5472EZT+T ECAD MODELS
|
MAX5472EZT+T APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
|
PARAMETRIC INFO
|
| Resistance Value (KOhm) |
100 |
| Number of Positions |
32 |
| Number of Pot per Package |
1 |
| Memory Type |
Non-Volatile |
| Taper Type |
Linear |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Extended |
| Power Supply Type |
Single |
| Maximum Single Supply Voltage (V) |
5.25 |
| Maximum Supply Current (mA) |
0.4 |
| Minimum Single Supply Voltage (V) |
2.7 |
| Typical Single Supply Voltage (V) |
5 |
| Control Interface |
Up/Down |
|
|
PACKAGE INFO
|
| Supplier Package |
TSOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
0.88 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Thin Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu 194 |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
|
|

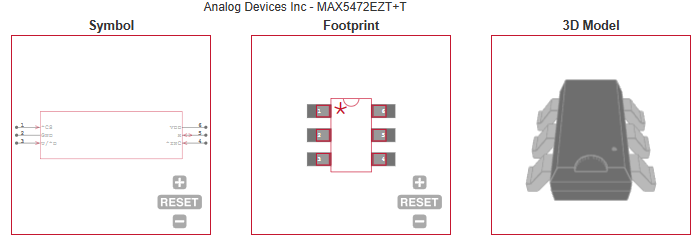

ECAD MODELS
|
|
|
APPLICATIONS
|
• Mechanical Potentiometer Replacement
|
| • Liquid-Crystal-Display (LCD) Screen Adjustment |
| • Audio Volume Control |
| • Programmable Filters |
| |
