| ♦ Adjustable Reset Threshold |
| ♦ Adjustable Reset Timeout |
| ♦ Adjustable Watchdog Timeout |
| ♦ 500x Watchdog Timeout Multiplier |
| ♦ 4µA Supply Current |
| ♦ RESET or RESET Output Options |
| ♦ Push-Pull or Open-Drain Output Options |
| ♦ Guaranteed RESET Asserted At or Above
VCC = 1V (MAX6301/MAX6303) |
| ♦ Power-Supply Transient Immunity |
| ♦ Watchdog Function can be Disabled |
| ♦ PDIP/SO/µMAX Packages Available |
|
| CATALOG |
| MAX6301ESA+T COUNTRY OF ORIGIN |
| MAX6301ESA+T PARAMETRIC INFO |
| MAX6301ESA+T PACKAGE INFO |
| MAX6301ESA+T MANUFACTURING INFO |
| MAX6301ESA+T PACKAGING INFO |
| MAX6301ESA+T ECAD MODELS |
| MAX6301ESA+T APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Thailand |
| Philippines |
| Malaysia |
| Taiwan (Province of China) |
|
| PARAMETRIC INFO |
| Output Driver |
Active Low/Open Drain |
| Manual Reset |
Yes |
| Watchdog Timer |
Yes |
| Number of Supervisors |
1 |
| Typical Reset Threshold Voltage (V) |
1.24 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Chip Enable Signals |
No |
| Power Fail Detection |
No |
| Battery Backup Switching |
No |
| Maximum Reset Active Time (ms) |
5.2 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Process Technology |
CMOS |
| Minimum Reset Threshold Voltage (V) |
1.195 |
| Maximum Reset Threshold Voltage (V) |
1.265 |
| Maximum Power Dissipation (mW) |
471 |
| Maximum Supply Current (uA) |
4(Typ) |
| Minimum Operating Supply Voltage (V) |
1.2 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
160 |
| Type |
Voltage Supervisory |
| Programmability |
No |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
4.9 |
| Package Width (mm) |
3.9 |
| Package Height (mm) |
1.37 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
4.9 |
| Package Overall Width (mm) |
6 |
| Package Overall Height (mm) |
1.55 |
| Seated Plane Height (mm) |
1.55 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu C194 |
| Number of Wave Cycles |
N/A |
|
| |

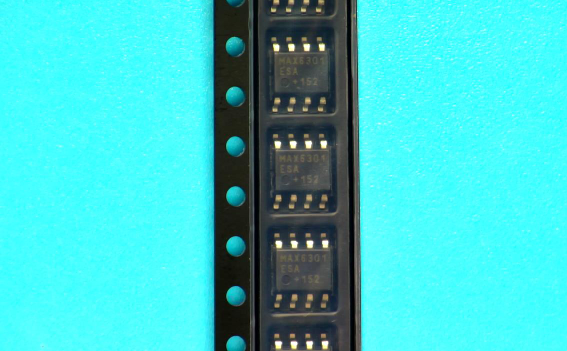

| PACKAGING INFO |
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
| |

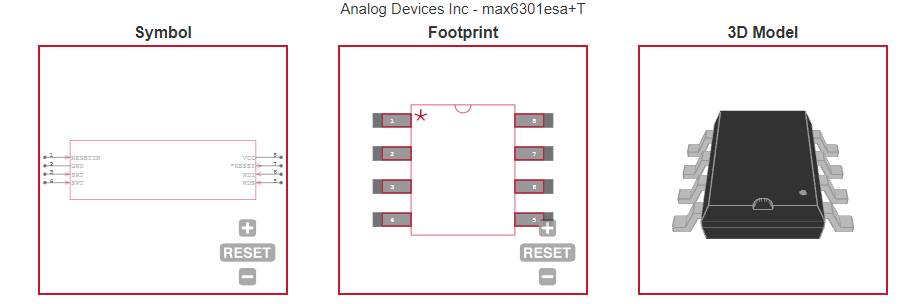

| ECAD MODELS |
 |
|
| APPLICATIONS |
| ♦ Medical Equipment |
| ♦ Intelligent Instruments |
| ♦ Portable Equipment |
| ♦ Battery-Powered |
| ♦ Computers/Controllers |
| ♦ Embedded Controllers |
| ♦ Critical µP Monitoring |
| ♦ Set-Top Boxes |
| ♦ Computers |
| |
| |
