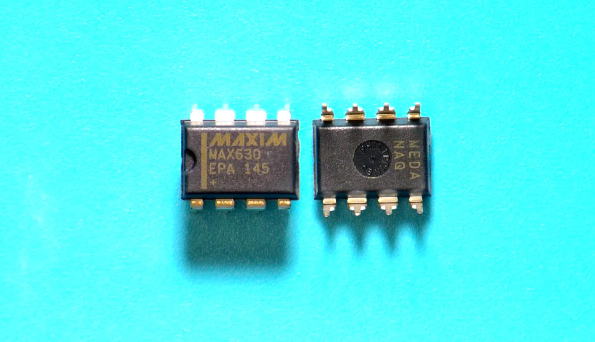

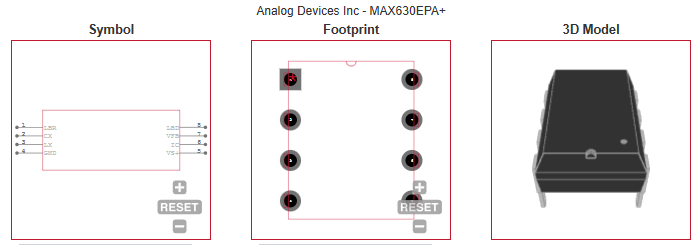

MAX630EPA+ Analog Devices / Maxim Integrated IC REG BOOST ADJ 525MA 8DIP

Type	Step Up
Number of Outputs	1
Minimum Input Voltage (V)	2
Maximum Input Voltage (V)	16.5
Output Voltage (V)	18(Max)
Maximum Output Power (W)	5
Maximum Output Current (A)	0.15
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Extended
Switching Frequency (kHz)	75
Efficiency (%)	85(Typ)
Switching Regulator	Yes
Operating Supply Voltage (V)	2 to 16.5
Output Type	Adjustable
Load Regulation	0.5%Vo
Line Regulation	0.2%Vo
Typical Quiescent Current (uA)	1(Max)
Minimum Storage Temperature (°C)	-65
Maximum Storage Temperature (°C)	160

Supplier Package	PDIP N
Basic Package Type	Through Hole
Pin Count	8
Lead Shape	Through Hole
PCB	8
Tab	N/R
Pin Pitch (mm)	2.54
Package Length (mm)	9.91(Max)
Package Width (mm)	7.87(Max)
Package Height (mm)	4.45(Max)
Package Diameter (mm)	N/R
Seated Plane Height (mm)	4.57(Max)
Mounting	Through Hole
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Plastic Dual In Line Package Narrow Body
Package Family Name	DIP
Jedec	MS-001AB
Package Outline	Link to Datasheet

MSL	1
Maximum Reflow Temperature (°C)	N/R
Reflow Solder Time (Sec)	N/R
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/A
Wave Solder Time (Sec)	N/A
Wave Temp. Source	Link to Datasheet
Lead Finish(Plating)	Matte Sn annealed
Under Plating Material	N/A
Terminal Base Material	Cu 194
Number of Wave Cycles	N/A

Packaging	Tube
Quantity Of Packaging	50
