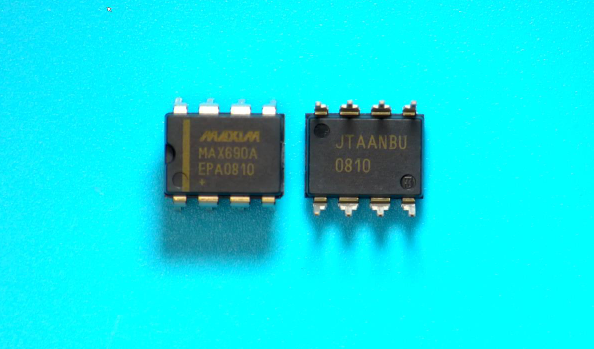

● Precision Supply Voltage Monitor:
- 4.65V for MAX690A/MAX802L/MAX805L
- 4.40V for MAX692A/MAX802M |
| ● Reset Time Delay: 200ms |
| ● Watchdog Timer: 1.6s Timeout |
| ● Battery-Backup Power Switching |
| ● 200μA Quiescent Supply Current |
| ● 50nA Quiescent Supply Current in BatteryBackup Mode |
| ● Voltage Monitor for Power-Fail or Low-Battery
Warning |
| ● Power-Fail Accuracy Guaranteed to ±2%
(MAX802L/M) |
| ● Guaranteed RESET Assertion to VCC = 1V |
| ● 8-Pin SO and DIP Packages |
|
| CATALOG |
| MAX690AEPA+ COUNTRY OF ORIGIN |
| MAX690AEPA+ PARAMETRIC INFO |
| MAX690AEPA+ PACKAGE INFO |
| MAX690AEPA+ MANUFACTURING INFO |
| MAX690AEPA+ PACKAGING INFO |
| MAX690AEPA+ ECAD MODELS |
| MAX690AEPA+ BLOCK DIAGRAM |
| MAX690AEPA+ APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
|
| PARAMETRIC INFO |
| Output Driver |
Active Low/Push-Pull |
| Manual Reset |
No |
| Watchdog Timer |
Yes |
| Number of Supervisors |
1 |
| Typical Reset Threshold Voltage (V) |
4.65 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Chip Enable Signals |
No |
| Power Fail Detection |
Yes |
| Battery Backup Switching |
Yes |
| Maximum Reset Active Time (ms) |
280 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Reset Threshold Voltage (V) |
4.5 |
| Maximum Reset Threshold Voltage (V) |
4.75 |
| Monitored Voltage (V) |
4.65 |
| Maximum Power Dissipation (mW) |
727 |
| Maximum Supply Current (uA) |
500 |
| Minimum Operating Supply Voltage (V) |
1.2 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
160 |
| Type |
Voltage Supervisory |
| Programmability |
No |
|
| |
| PACKAGE INFO |
| Supplier Package |
PDIP N |
| Basic Package Type |
Through Hole |
| Pin Count |
8 |
| Lead Shape |
Through Hole |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
9.91(Max) |
| Package Width (mm) |
7.87(Max) |
| Package Height (mm) |
4.45(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
4.57(Max) |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Plastic Dual In Line Package Narrow Body |
| Package Family Name |
DIP |
| Jedec |
MS-001AB |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu C194 |
| Number of Wave Cycles |
N/A |
|
| |
| PACKAGING INFO |
| Packaging |
Tube |
| Quantity Of Packaging |
50 |
|

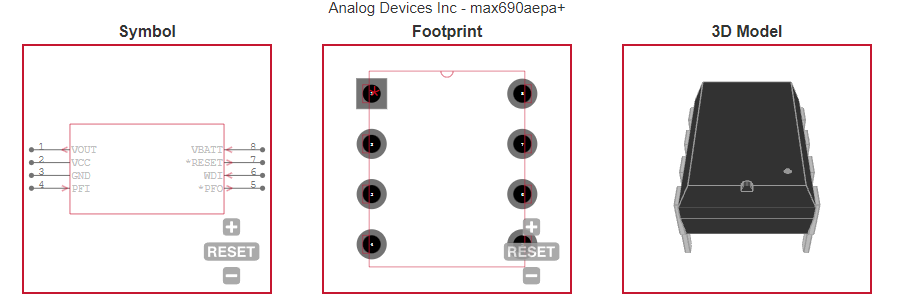

| |
| ECAD MODELS |
 |
|

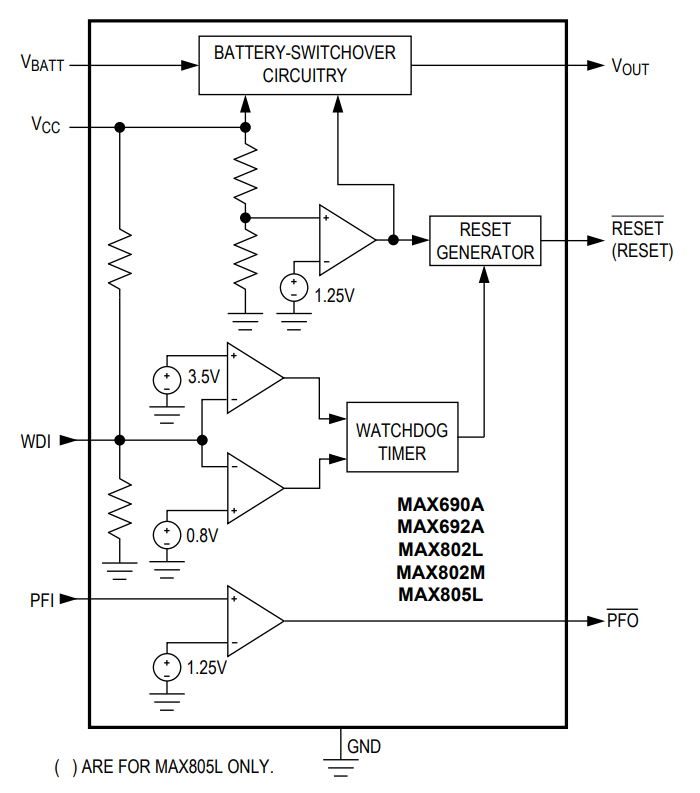

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| ● Battery-Powered Computers and Controllers |
| ● Intelligent Instruments |
| ● Critical μP Power Monitoring |
| |
|
