• +2.0V to +6.0V Input Voltage Range
|
• Flexible Control of Output Voltage:
Digital Control
Potentiometer Adjustment
PWM Control
|
• Output Voltage Range Set by One Resistor
|
• Low, 60µA Max Quiescent Current
|
• 15µA Max Shutdown Mode
|
• Small Size – 8-Pin SO and Plastic DIP Packages
|
|
| CATALOG |
MAX749ESA+T PARAMETRIC INFO
|
MAX749ESA+T PACKAGE INFO
|
MAX749ESA+T MANUFACTURING INFO
|
MAX749ESA+T PACKAGING INFO
|
MAX749ESA+T ECAD MODELS
|
MAX749ESA+T APPLICATIONS
|
|
PARAMETRIC INFO
|
| Category |
Adjustable LCD Bias Supply |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Operating Supply Voltage (V) |
6 |
| Minimum Operating Supply Voltage (V) |
2 |
| Input Voltage (V) |
2 to 6 |
| Switching Frequency (kHz) |
500 |
| Supplier Temperature Grade |
Extended |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Power Dissipation (mW) |
471 |
| Maximum Storage Temperature (°C) |
160 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
4.9 |
| Package Width (mm) |
3.9 |
| Package Height (mm) |
1.37 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
4.9 |
| Package Overall Width (mm) |
6 |
| Package Overall Height (mm) |
1.55 |
| Seated Plane Height (mm) |
1.55 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu C194 |
| Number of Wave Cycles |
N/R |
|
|

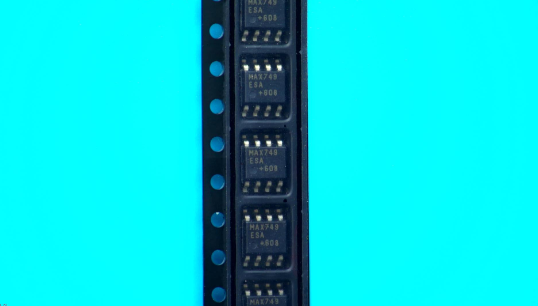

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|

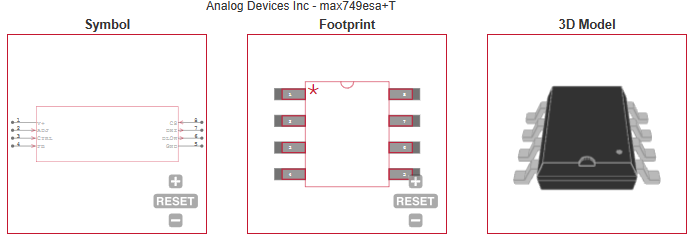

ECAD MODELS
|
|
|
APPLICATIONS
|
• Notebook Computers
|
| • Laptop Computers
|
| • Palmtop Computers |
| • Personal Digital Assistants |
• Communicating Computers
|
• Portable Data-Collection Terminals
|
| |
|
| |
