• Up to 16V Protection
|
• 13.7V Maximum Input Operating Voltage
|
• 3.15A Maximum Charging Current
|
• Reverse Boost Capability up to 5.1V, 1.5A
|
• Integrated Power Path
|
• Integrated Battery True-Disconnect FET
|
• 3mm x 3mm, 24-Lead FC2QFN Package
|
|
| CATALOG |
MAX77757HEFG360+ PARAMETRIC INFO
|
MAX77757HEFG360+ PACKAGE INFO
|
MAX77757HEFG360+ MANUFACTURING INFO
|
MAX77757HEFG360+ PACKAGING INFO
|

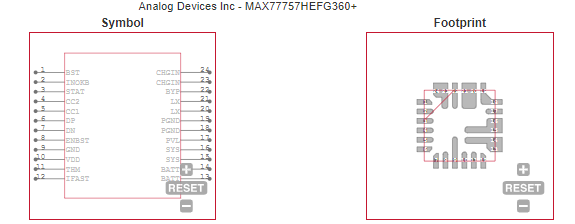

MAX77757HEFG360+ ECAD MODELS
|
MAX77757HEFG360+ APPLICATIONS
|
|
PARAMETRIC INFO
|
| Type |
Switching Battery Charger |
| Battery Type |
Li-FePO4 |
| Output Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Operating Supply Voltage Range (V) |
4.5 to 13.7 |
| Maximum Operating Supply Voltage (V) |
13.7 |
| Maximum Supply Current (mA) |
4 |
| Output Current (mA) |
3150(Max) |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|

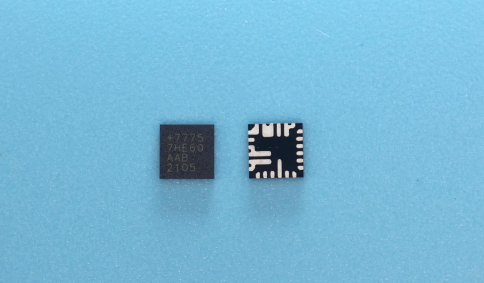

PACKAGE INFO
|
| Supplier Package |
FC2QFN |
| Pin Count |
24 |
| PCB |
24 |
| Tab |
N/R |
| Package Length (mm) |
3 |
| Package Width (mm) |
3 |
| Package Height (mm) |
0.53 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.55 |
| Mounting |
Surface Mount |
| Package Family Name |
QFN |
|
|
MANUFACTURING INFO
|
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
624 |
|
|
| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Mobile Point-of-Sale (mPOS) Terminals |
| • Portable Medical Devices |
| • Wireless Headphones |
| • GPS Trackers |
| • Charging Cradles for Wearable Devices |
| • Power Banks |
| • Mobile Routers |
| |
