• Single- (MAX9586), Dual- (MAX9587),
Triple- (MAX9588), and Quad- (MAX9589)
Channel Devices
|
• 8.5MHz, ±1dB Passband
|
• 55dB Attenuation at 27MHz
|
• Fixed Gain of 2V/V
|
• Low Power: 4.25mA per Channel
|
• 2.7V to 3.6V Single-Supply Operation
|
• Small SOT23 and µMAX Packages
|
|
| CATALOG |
| MAX9586AZK+T COUNTRY OF ORIGIN |
MAX9586AZK+T PARAMETRIC INFO
|
MAX9586AZK+T PACKAGE INFO
|
MAX9586AZK+T MANUFACTURING INFO
|
MAX9586AZK+T PACKAGING INFO
|
MAX9586AZK+T ECAD MODELS
|
MAX9586AZK+T BLOCK DIAGRAM
|
MAX9586AZK+T APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Philippines |
Thailand
|
|
PARAMETRIC INFO
|
| Number of Circuits |
1 |
| Signal to Noise Ratio (dB) |
71 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Supplier Temperature Grade |
Automotive |
| Power Supply Type |
Single |
| Operating Supply Voltage (V) |
3 |
| Minimum Single Supply Voltage (V) |
2.7 |
| Typical Single Supply Voltage (V) |
3 |
| Maximum Single Supply Voltage (V) |
3.6 |
| Maximum Power Dissipation (mW) |
727 |
|
|
PACKAGE INFO
|
| Supplier Package |
TSOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
0.88 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Thin Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu 194 |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
|
|
ECAD MODELS
|
|
|

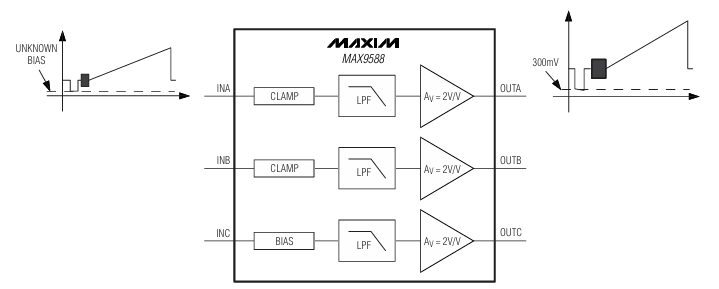

BLOCK DIAGRAM
|
|
|
APPLICATIONS
|
