● Differential Input Stage Provides Enhanced Noise Immunity
|
● Precision Amplifier and Comparator Allows Small-Signal Detection
|
● User-Enabled Internal Adaptive Peak Threshold or Flexible External Threshold
|
● Zero-Crossing Detection Provides Accurate Phase Information
|
|
| CATALOG |

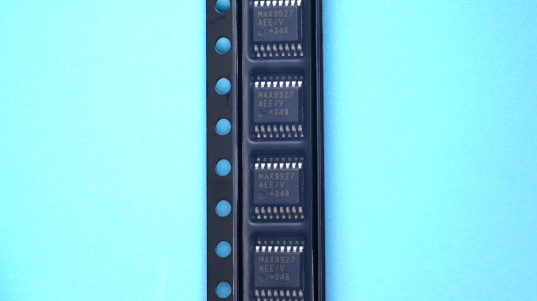

MAX9927AEE/V+T COUNTRY OF ORIGIN
|
MAX9927AEE/V+T PARAMETRIC INFO
|
MAX9927AEE/V+T PACKAGE INFO
|
MAX9927AEE/V+T MANUFACTURING INFO
|
MAX9927AEE/V+T PACKAGING INFO
|
MAX9927AEE/V+T ECAD MODELS
|
MAX9927AEE/V+T APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
Malaysia
|
|
PARAMETRIC INFO
|
| Sensor Type |
Variable Reluctance |
| Input Type |
Differential |
| Output Type |
Logic |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Typical Operating Supply Voltage (V) |
5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Typical Supply Current (mA) |
4.7 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Supplier Temperature Grade |
Automotive |
| Temperature Flag |
Opr |
|
|
PACKAGE INFO
|
| Supplier Package |
QSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
Gull-wing |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.64 |
| Package Length (mm) |
4.9 |
| Package Width (mm) |
3.89 |
| Package Height (mm) |
1.47 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
4.9 |
| Package Overall Width (mm) |
6 |
| Package Overall Height (mm) |
1.6 |
| Seated Plane Height (mm) |
1.6 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Quarter Size Outline Package Or Quality Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-137AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu 194 |
|
|
PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
|
|
ECAD MODELS
|
|
|
| APPLICATIONS |
| • Camshaft VRS Interfaces |
| • Crankshaft VRS Interfaces |
| • Vehicle Speed VRS Interfaces |
| |
