• Battery voltage range, 5.0 V < VBATT < 32 V
|
• Pre-drive operating voltage up to 72 V
|
• High-side/ low-side pre-drive PWM capability up to 100 kHz–30 nC
|
| • All pre-drivers have four selectable slew rates |
| • Eight selectable, pre-defined VDS monitoring thresholds |
| • Encryption for microcode protection |
| • Integrated 1.0 MHz back-up clock |
| • Programmable integrated End-of-Injection (EOI) measurement function (MC33816MAE only) |
| |
| CATALOG |
| MC33816AER2 COUNTRY OF ORIGIN |
MC33816AER2 PARAMETRIC INFO
|
MC33816AER2 PACKAGE INFO
|
MC33816AER2 MANUFACTURING INFO
|
MC33816AER2 PACKAGING INFO
|
| MC33816AER2 APPLICATIONS |
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| Maximum Operating Supply Voltage (V) |
72 |
|
| |
PACKAGE INFO
|
| Supplier Package |
LQFP EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
64 |
| Lead Shape |
Gull-wing |
| PCB |
64 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
10 |
| Package Width (mm) |
10 |
| Package Height (mm) |
1.45(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
12 |
| Package Overall Width (mm) |
12 |
| Package Overall Height (mm) |
1.6(Max) |
| Seated Plane Height (mm) |
1.6(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Low Profile Quad Flat Package, Exposed Pad |
| Package Family Name |
QFP |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
40 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R2 |

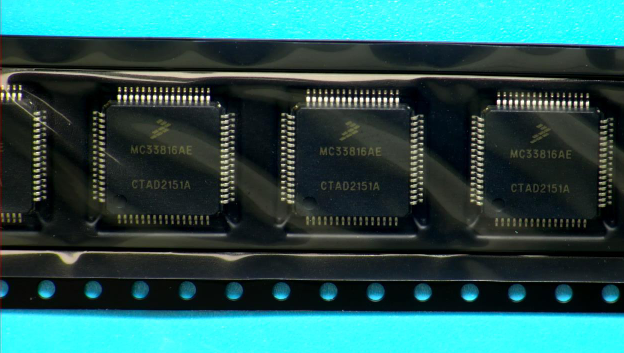

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1500 |
| Packaging Document |
Link to Datasheet |
|
| |
| APPLICATIONS |
| • Automotive (12 V), truck and industrial (24 V) powertrain |
| • Diesel and gasoline direct injection |
| • Transmission |
| |
