• 5.0 V to 28 V continuous operation (transient operation from 5.0 V to 40 V)
|
• 225 mΩ maximum RDS(on) at 150 °C (each H-bridge MOSFET)
|
• 3.0 V and 5.0 V TTL/CMOS logic compatible inputs
|
• Overcurrent limiting (regulation) via an internal constant-off-time PWM
|
• Output short-circuit protection (short to VPWR or ground)
|
• Temperature dependent current limit threshold reduction
|
• All inputs have an internal source/sink to define the default (floating input) states
|
• Sleep mode with current draw < 50 µA (with inputs floating or set to match default logic
states)
|
• AEC-Q100 grade 1 qualified
|
|
| CATALOG |
| MC33926PNBR2 COUNTRY OF ORIGIN |
MC33926PNBR2 PARAMETRIC INFO
|
MC33926PNBR2 PACKAGE INFO
|
MC33926PNBR2 MANUFACTURING INFO
|
MC33926PNBR2 PACKAGING INFO
|
MC33926PNBR2 ECAD MODELS
|
MC33926PNBR2 FUNCTIONAL BLOCK DIAGRAM
|
MC33926PNBR2 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| China |
Faroe Islands
|
Poland
|
|
PARAMETRIC INFO
|
| Type |
Motor Driver |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Supply Voltage (V) |
5 |
| Operating Supply Voltage (V) |
5 to 28 |
| Maximum Operating Supply Voltage (V) |
28 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Output Configuration |
Dual Half Bridge |
| Control Interface |
PWM |
| Maximum Output Current (A) |
5 |
| Maximum Peak Output Current (A) |
5 |
| Motor Type |
DC Motor |
|
|
PACKAGE INFO
|
| Supplier Package |
PQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
32 |
| Lead Shape |
No Lead |
| PCB |
32 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.8 |
| Package Length (mm) |
8 |
| Package Width (mm) |
8 |
| Package Height (mm) |
2.2(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Plastic Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

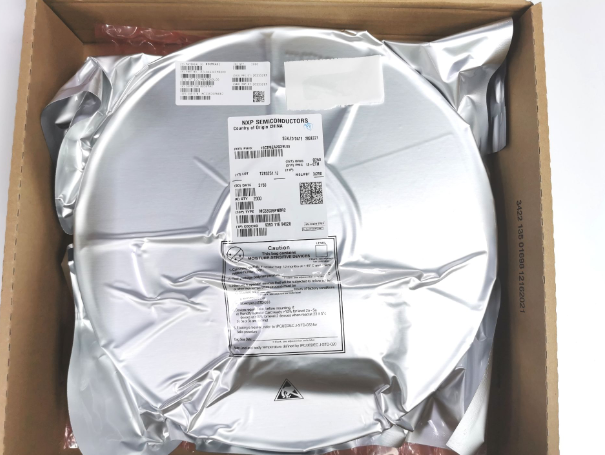

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2000 |
|
|

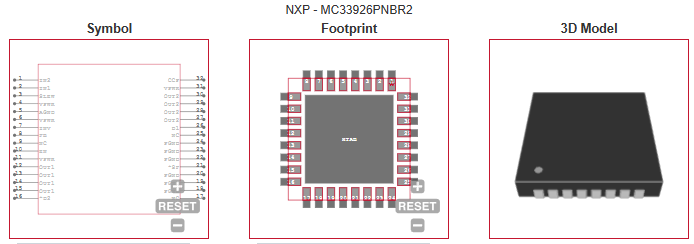

ECAD MODELS
|
|
|

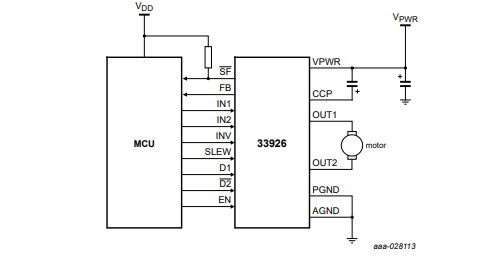

FUNCTIONAL BLOCK DIAGRAM
|
|
|
APPLICATIONS
|
• Electronic throttle control (ETC)
|
• Exhaust gas recirculation (EGR)
|
• Turbo flap control
|
• Industrial and medical pumps and motor control
|
|
