• 8.0 to 28 V continuous operation (transient operation from 5.0 to 40 V)
|
• 235 mΩ maximum RDS(on) @ TJ= 150 °C (each H-bridge MOSFET)
|
• 3.0 V and 5.0 V TTL / CMOS logic compatible inputs
|
• Output short-circuit protection (short to VPWR or GND)
|
• Overcurrent limiting (regulation) via internal constant-off-time PWM
|
• Temperature dependent current limit threshold reduction
|
• All inputs have an internal source/sink to define the default (floating input) state
|
|
| CATALOG |
MC33932VW COUNTRY OF ORIGIN
|
| MC33932VW LIFECYCLE |
MC33932VW PARAMETRIC INFO
|
MC33932VW PACKAGE INFO
|
MC33932VW MANUFACTURING INFO
|
MC33932VW PACKAGING INFO
|
MC33932VW ECAD MODELS
|
MC33932VW APPLICATIONS
|
|
| LIFECYCLE |
LTB
Jan 31,2026 |
|
COUNTRY OF ORIGIN
|
Korea (Republic of)
|
|
PARAMETRIC INFO
|
| Type |
Motor Driver |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Supply Voltage (V) |
8 |
| Maximum Operating Supply Voltage (V) |
28 |
| Motor Type |
Servo Motor |
|
|
PACKAGE INFO
|

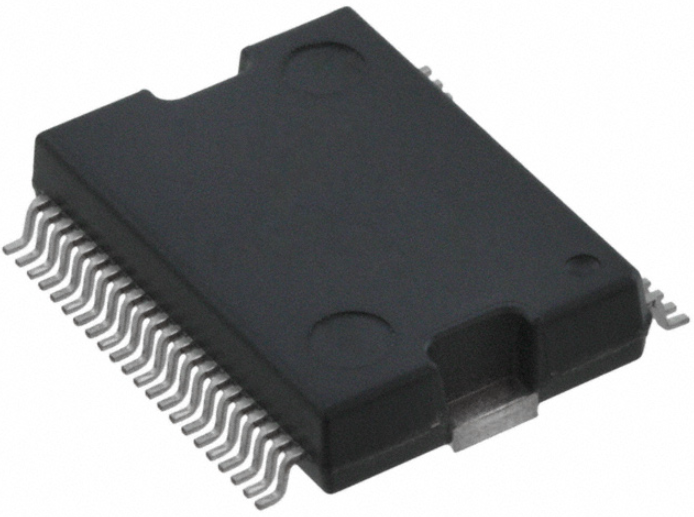

| Supplier Package |
HSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
46 |
| Lead Shape |
Gull-wing |
| PCB |
44 |
| Tab |
2Tab |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
16(Max) |
| Package Width (mm) |
11.1(Max) |
| Package Height (mm) |
3.22(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
3.4(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Heat Sinked Small Outline Package |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
30 |
| Packaging Document |
Link to Datasheet |
|
|
| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Electronic throttle control (ETC) |
| • Exhaust gas recirculation (EGR) |
| • Turbo flap control |
| • Industrial and medical pumps |
| • Stepper motor control |
| • Dual motor drive |
| |
