| • Wide Range of Available, Fixed Output Voltages |
| • Low Cost |
| • Internal Short Circuit Current Limiting |
| • Internal Thermal Overload Protection |
| • No External Components Required |
| • Complementary Negative Regulators Offered (MC79L00A Series) |
| • NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable |
| • These are Pb−Free Devices |
|
| CATALOG |
| MC78L05ACPG COUNTRY OF ORIGIN |
| MC78L05ACPG PARAMETRIC INFO |
| MC78L05ACPG PACKAGE INFO |
| MC78L05ACPG MANUFACTURING INFO |
| MC78L05ACPG PACKAGING INFO |
| MC78L05ACPG ECAD MODELS |
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Type |
Standard |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.1 |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
200°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Short Circuit Protection|Thermal Shutdown Protection |
| Load Regulation |
60mV |
| Line Regulation |
150mV |
| Minimum Input Voltage (V) |
6.7 |
| Maximum Input Voltage (V) |
30 |
| Output Voltage (V) |
5 |
| Typical Quiescent Current (mA) |
3 |
| Typical Dropout Voltage @ Current (V) |
1.7@40mA |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical PSRR (dB) |
49 |
| Typical Output Noise Voltage (uVrms) |
40 |
|

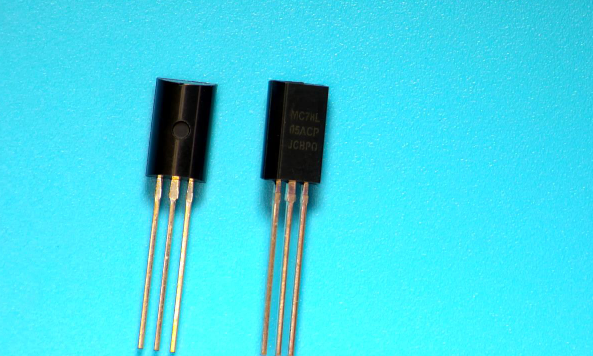

| |
| PACKAGE INFO |
| Supplier Package |
TO-92 |
| Basic Package Type |
Through Hole |
| Pin Count |
3 |
| Lead Shape |
Through Hole |
| PCB |
3 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.39(Max) |
| Package Length (mm) |
5.2(Max) |
| Package Width (mm) |
4.19(Max) |
| Package Height (mm) |
5.33(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
5.33(Max) |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Plastic Header Style Package |
| Package Family Name |
TO |
| Jedec |
TO-226-AA |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Maximum Wave Temperature (°C) |
265 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/A |
|
| |
| PACKAGING INFO |
| Packaging |
Bag |
| Quantity Of Packaging |
2000 |
| Packaging Document |
Link to Datasheet |
|
| |

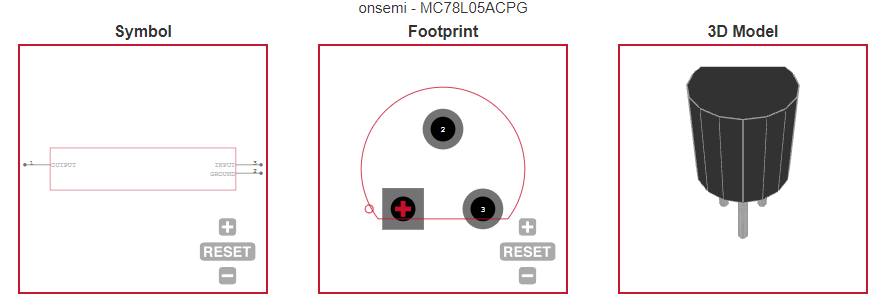

| ECAD MODELS |
 |
| |
|
