• No External Components Required
|
• Internal Thermal Overload Protection
|
• Internal Short Circuit Current Limiting
|
• Output Transistor Safe−Area Compensation
|
• MC78M00A High Accuracy (±2%) Available for 5.0 V, 8.0 V, 12 V and 15 V
|
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
|
• These are Pb−Free Devices
|
|
| CATALOG |
MC78M05BDTRKG COUNTRY OF ORIGIN
|
MC78M05BDTRKG PARAMETRIC INFO
|
MC78M05BDTRKG PACKAGE INFO
|
MC78M05BDTRKG MANUFACTURING INFO
|
MC78M05BDTRKG PACKAGING INFO
|
MC78M05BDTRKG ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Standard |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Regulation Condition Change In Load |
495mA |
| Regulation Condition Change In Line |
18V |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
92°C/W |
| Junction to Case |
5°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Safe Area Protection|Short Circuit Protection|Thermal Shutdown Protection |
| Load Regulation |
100mV |
| Line Regulation |
50mV |
| Maximum Quiescent Current (mA) |
0.8 |
| Maximum Input Voltage (V) |
35 |
| Output Voltage (V) |
5 |
| Typical Dropout Voltage @ Current (V) |
2@350mA |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical PSRR (dB) |
80 |
| Typical Output Noise Voltage (uVrms) |
40 |
|
|
PACKAGE INFO
|
| Supplier Package |
DPAK |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
2 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.29 |
| Package Length (mm) |
6.73(Max) |
| Package Width (mm) |
6.22(Max) |
| Package Height (mm) |
2.38(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
6.73(Max) |
| Package Overall Width (mm) |
10.41(Max) |
| Package Overall Height (mm) |
2.51(Max) |
| Seated Plane Height (mm) |
2.51(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Deca Watt Package |
| Package Family Name |
TO-252 |
| Jedec |
TO-252AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
CuNi |
| Number of Wave Cycles |
N/R |
|
|

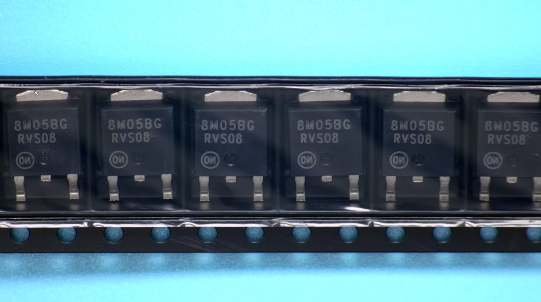

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Packaging Document |
Link to Datasheet |
|
|

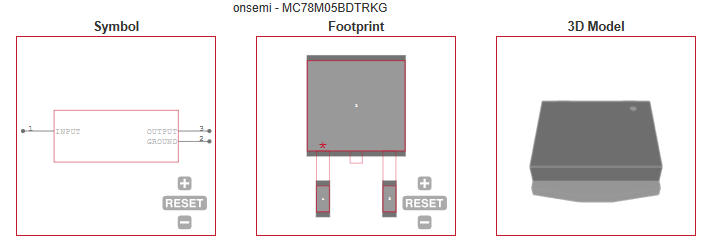

ECAD MODELS
|
|
|
