• 3-Terminal Regulators
|
• Output Current Up To 100 mA
|
• No External Components Required
|
• Internal Thermal-Overload Protection
|
• Internal Short-Circuit Current Limiting
|
• Direct Replacement for Industry-StandardMC79L00 Series
|
• Available in 5% or 10% Selections
|
|
| CATALOG |
MC79L15ACLPR COUNTRY OF ORIGIN
|
MC79L15ACLPR LIFECYCLE
|
MC79L15ACLPR PARAMETRIC INFO
|
MC79L15ACLPR PACKAGE INFO
|
MC79L15ACLPR MANUFACTURING INFO
|
MC79L15ACLPR PACKAGING INFO
|
| MC79L15ACLPR ECAD MODELS |
|
COUNTRY OF ORIGIN
|
Malaysia
|
Philippines
|
ChinaV
|
|
LIFECYCLE
|
LTB
Mar 25,2024
|
|
PARAMETRIC INFO
|
| Type |
Standard |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.1 |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
<1.8 |
| Junction to Ambient |
140°C/W |
| Polarity |
Negative |
| Special Features |
Current Limit|Short Circuit Protection|Thermal Shutdown Protection |
| Load Regulation |
150mV |
| Line Regulation |
300mV |
| Minimum Input Voltage (V) |
-30 |
| Maximum Input Voltage (V) |
-17.5 |
| Output Voltage (V) |
-15 |
| Typical Quiescent Current (mA) |
6.5 |
| Typical Dropout Voltage @ Current (V) |
1.7@40mA |
| Accuracy (%) |
±5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Output Capacitance (uF) |
0(Min) |
| Typical Output Noise Voltage (uVrms) |
40 |
|
|
PACKAGE INFO
|
| Supplier Package |
TO-92 |
| Basic Package Type |
Through Hole |
| Pin Count |
3 |
| Lead Shape |
Through Hole |
| PCB |
3 |
| Tab |
N/R |
| Package Length (mm) |
5.21(Max) |
| Package Width (mm) |
4.19(Max) |
| Package Height (mm) |
5.34(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5.21(Max) |
| Package Overall Width (mm) |
4.19(Max) |
| Package Overall Height (mm) |
5.34(Max) |
| Seated Plane Height (mm) |
5.34(Max) |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Plastic Header Style Package |
| Package Family Name |
TO |
| Jedec |
TO-226-AA |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|

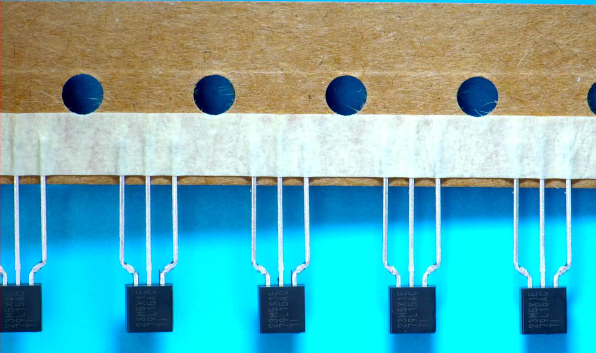

| PACKAGING INFO |
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2000 |
| Reel Diameter (in) |
14 |
| Tape Pitch (mm) |
13 |
| Tape Width (mm) |
18 |
| Packaging Document |
Link to Datasheet |
|
|
|

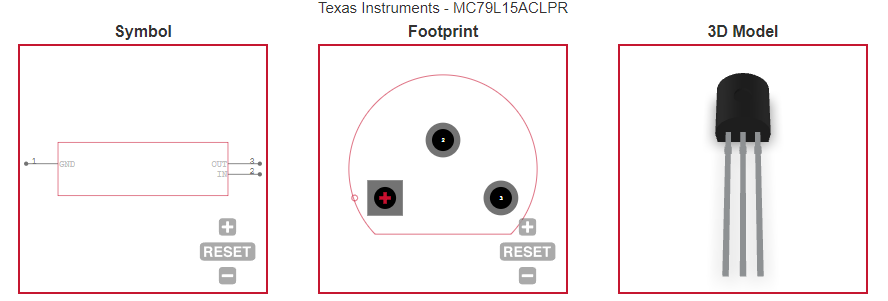

| ECAD MODELS |
 |
|
|
| |
| |
