• Maximum Temperature Coefficient: 50 ppm/°C
from -40°C to +125°C
|
• Initial Accuracy: 0.1%
|
• Operating Temperature Range: -40°C to +125°C
|
| • Low Typical Operating Current: 140 μA |
| • Line Regulation: 50 ppm/V Maximum |
| • Load Regulation: 40 ppm/mA Maximum |
| • 8 Voltage Variants Available:
- 1.024V
- 1.250V
- 1.800V
- 2.048V
- 2.500V
- 3.000V
- 3.300V
- 4.096V
|
| • Output Noise: 30 µVRMS, 0.1 Hz to 10 kHz
(1.024V) |
| • AEC-Q100 Qualified (Automotive Applications)
- Package qualified: 6-Lead SOT-23 |
|
| CATALOG |
MCP1501T-18E/CHY PARAMETRIC INFO
|
MCP1501T-18E/CHY PACKAGE INFO
|
MCP1501T-18E/CHY MANUFACTURING INFO
|
MCP1501T-18E/CHY PACKAGING INFO
|
MCP1501T-18E/CHY APPLICATIONS
|
|
PARAMETRIC INFO
|
| Topology |
Series |
| Reference Type |
Precision |
| Output Voltage (V) |
1.8 |
| Initial Accuracy |
0.1% |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Load Regulation |
70ppm/mA |
| Line Regulation |
50ppm/V |
| Maximum Input Voltage (V) |
5.5 |
| Maximum Output Current (mA) |
20 |
| Maximum Temperature Coefficient |
50ppm/°C |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
1.15 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
T |

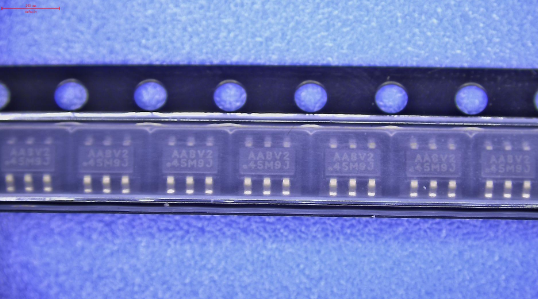

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|
APPLICATIONS
|
• Precision Data Acquisition Systems
|
• High-Resolution Data Converters
|
| • Medical Equipment Applications |
| • Industrial Controls |
| • Battery-Powered Devices |
• Electric Vehicle Battery Management Systems
|
| |
