• Maximum Temperature Coefficient: 50 ppm/°C from -40°C to +125°C
|
• Initial Accuracy: 0.1%
|
• Operating Temperature Range: -40°C to +125°C
|
| • Low Typical Operating Current: 140 μA
|
| • Line Regulation: 50 ppm/V Maximum |
| • Load Regulation: 40 ppm/mA Maximum |
| • 8 Voltage Variants Available:- 1.024V- 1.250V- 1.800V- 2.048V- 2.500V- 3.000V- 3.300V- 4.096V |
| • Output Noise: 30 µVRMS, 0.1 Hz to 10 kHz(1.024V) |
| • AEC-Q100 Qualified (Automotive Applications)- Package qualified: 6-Lead SOT-23 |
|
| CATALOG |
MCP1501T-30E/CHY PARAMETRIC INFO
|
MCP1501T-30E/CHY PACKAGE INFO
|
MCP1501T-30E/CHY MANUFACTURING INFO
|
MCP1501T-30E/CHY PACKAGING INFO
|
| MCP1501T-30E/CHY APPLICATIONS |
|
PARAMETRIC INFO
|
| Topology |
Series |
| Reference Type |
Precision |
| Output Voltage (V) |
3 |
| Initial Accuracy |
0.1% |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Load Regulation |
70ppm/mA |
| Line Regulation |
50ppm/V |
| Maximum Input Voltage (V) |
5.5 |
| Maximum Output Current (mA) |
20 |
| Maximum Temperature Coefficient |
50ppm/°C |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOT-23 |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
6 |
| Pin shape |
Gull-wing |
| PCB |
6 |
| ears |
N/R |
| Package length (mm) |
2.9 |
| Package width (mm) |
1.6 |
| Package height (mm) |
1.15 |
| Package diameter (mm) |
N/R |
| Install |
Surface Mount |
| package instruction |
Small Outline Transistor |
| Package series name |
SOT |
| JEDEC |
MO-178AB |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Lead Finish(Plating) |
Au |
| Plating materials |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
T |

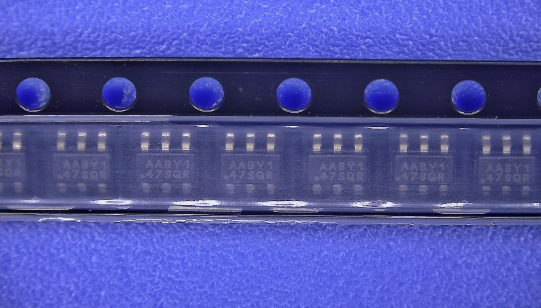

| Package |
Tape and reel packaging |
| Packing quantity |
3000 |
|
|
| APPLICATIONS |
| • Precision Data Acquisition Systems |
| • High-Resolution Data Converters |
| • Medical Equipment Applications |
| • Industrial Controls |
| • Battery-Powered Devices |
| • Electric Vehicle Battery Management Systems |
| |
