• Up to 96% Typical Efficiency
|
• Input Voltage Range:
- 4.0V to 30V (MCP16301)
- 4.7V to 36V (MCP16301H)
|
• Output Voltage Range: 2.0V to 15V
|
• 2% Output Voltage Accuracy
|
• Passes Automotive AEC-Q100 Reliability Testing
|
| • Integrated N-Channel Buck Switch: 460 m |
| • Minimum 600 mA Output Current Over All Input
Voltage Range (See Figure 2-6 for Maximum
Output Current vs. VIN):
- Up to 1A output current at 3.3V, 5V and 12V
VOUT, SOT-23 package at +25°C ambient
temperature |
| • 500 kHz Fixed Frequency |
| • Adjustable Output Voltage |
| • Low Device Shutdown Current |
| • Peak Current Mode Control |
| • Internal Soft-Start |
| • Internal Compensation
|
| • Stable with Ceramic Capacitors |
| • Cycle-by-Cycle Peak Current Limit |
| • Undervoltage Lockout (UVLO): 3.5V |
| • Overtemperature Protection |
| • Available Package: SOT-23-6 |
|
| CATALOG |
MCP16301T-I/CHY COUNTRY OF ORIGIN
|
MCP16301T-I/CHY PARAMETRIC INFO
|
MCP16301T-I/CHY PACKAGE INFO
|
MCP16301T-I/CHY MANUFACTURING INFO
|
MCP16301T-I/CHY PACKAGING INFO
|
MCP16301T-I/CHY ECAD MODELS
|
MCP16301T-I/CHY APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Thailand |
|
PARAMETRIC INFO
|
| Type |
Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4 |
| Maximum Input Voltage (V) |
30 |
| Output Voltage (V) |
2 to 15 |
| Maximum Output Current (A) |
0.6(Min) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Switching Frequency (kHz) |
500(Typ) |
| Efficiency (%) |
96(Typ) |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
4 to 30 |
| Output Type |
Adjustable |
| Line Regulation |
0.01%/V(Typ) |
| Typical Quiescent Current (uA) |
2000 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
1.3 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
1.15 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

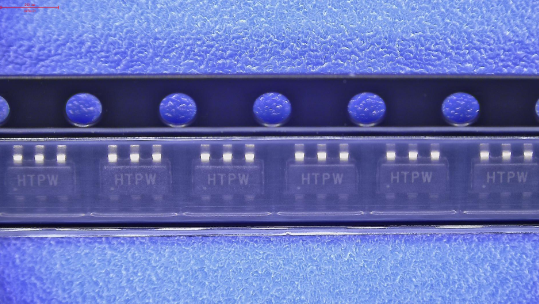

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• PIC® Microcontroller and dsPIC® Digital Signal
Controller Bias Supply
|
| • 24V Industrial Input DC-DC Conversion
|
• Set-Top Boxes
|
• DSL Cable Modems
|
• Automotive
|
| • Wall Cube Regulation |
| • SLA Battery-Powered Devices |
| • AC-DC Digital Control Power Source |
| • Power Meters |
|
