• AEC-Q100 Qualified and PPAP Capable
|
• 1.6 µA Typical Quiescent Current
|
• Input Operating Voltage Range: 2.3V to 6.0V
|
| • Output Voltage Range: 1.2V to 5.0V |
| • 250 mA Output Current for Output Voltages 2.5V |
| • 200 mA Output Current for Output Voltages < 2.5V |
| • Low Dropout (LDO) Voltage- 178 mV Typical @ 250 mA for VOUT = 2.8V |
| • 0.4% Typical Output Voltage Tolerance |
| • Standard Output Voltage Options:- 1.2V, 1.8V, 2.5V, 2.8V, 2.9V, 3.0V, 3.3V, 5.0V |
| • Stable with 1.0 µF Ceramic Output Capacitor |
| • Short Circuit Protection |
| • Overtemperature Protection |
| |
| CATALOG |
| MCP1700T-3302E/TT COUNTRY OF ORIGIN |
MCP1700T-3302E/TT PARAMETRIC INFO
|
MCP1700T-3302E/TT PACKAGE INFO
|
MCP1700T-3302E/TT MANUFACTURING INFO
|
MCP1700T-3302E/TT PACKAGING INFO
|
MCP1700T-3302E/TT EACD MODELS
|
| MCP1700T-3302E/TT APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Thailand |
| China |
| Singapore |
| Philippines |
| |
PARAMETRIC INFO
|
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.25(Min) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Regulation Condition Change In Load |
249.9mA |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
212°C/W(Typ) |
| Junction to Case |
139°C/W(Typ) |
| Polarity |
Positive |
| Special Features |
Current Limit|Short Circuit Protection|Thermal Shutdown Protection |
| Process Technology |
CMOS |
| Load Regulation |
1%(Typ) |
| Line Regulation |
0.75%/V(Typ) |
| Maximum Quiescent Current (mA) |
0.004 |
| Maximum Dropout Voltage @ Current (V) |
0.35@250mA |
| Minimum Input Voltage (V) |
2.3 |
| Maximum Input Voltage (V) |
6 |
| Output Voltage (V) |
3.3 |
| Typical Quiescent Current (mA) |
0.0016 |
| Typical Dropout Voltage @ Current (V) |
0.178@250mA |
| Accuracy (%) |
±2 |
| Supplier Temperature Grade |
Extended |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Noise Spectral Density (uV/rtHz) |
3@1kHz |
| Typical PSRR (dB) |
44 |
| Typical Output Capacitance (uF) |
1 |
| Pass Element Type |
PMOS |
| Output Capacitor Type |
Ceramic|Tantalum|Aluminum |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
N/R |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.3 |
| Package Height (mm) |
0.95 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
TO-236AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy|Alloy 42 |
| Number of Wave Cycles |
N/R |
|
|

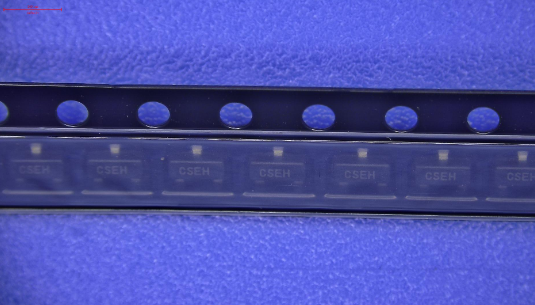

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Single Pin At Sprocket Hole |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|
ECAD MODELS
|
|
| APPLICATIONS |
| • Battery-Powered Devices |
| • Battery-Powered Alarm Circuits |
| • Smoke Detectors |
| • CO2 Detectors |
| • Pagers and Cellular Phones |
| • Smart Battery Packs |
| • Low Quiescent Current Voltage Reference |
| • PDAs |
| • Digital Cameras |
| • Microcontroller Power |
| |
