• Supports baud rates up to 20 Kbaud
|
• 40V load dump protected
|
• Wide supply voltage, 6.0 – 18.0V, continuous- Maximum input voltage of 30V
|
• Extended Temperature Range: -40°C to +125°C
|
• Interface to standard USARTs
|
• Compatible with LIN Spec 1.3
|
• Automatic thermal shutdown
|
|
| CATALOG |
MCP201-I/SN COUNTRY OF ORIGIN
|
MCP201-I/SN LIFECYCLE
|
MCP201-I/SN PARAMETRIC INFO
|
MCP201-I/SN PACKAGE INFO
|
MCP201-I/SN MANUFACTURING INFO
|
MCP201-I/SN PACKAGING INFO
|
MCP201-I/SN ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
|
LIFECYCLE
|
Obsolete
Aug 31,2013
|
|
PARAMETRIC INFO
|
| Built-in Options |
Voltage Regulator |
| Regulator Voltage (V) |
5 |
| Maximum Data Rate (kBd) |
20 |
| LIN Specifications |
LIN 1.3 |
| LIN Bus Wake-up Capable |
No |
| External Wake-up Pin |
Yes |
| Minimum LIN Bus Voltage (V) |
-18 |
| Maximum LIN Bus Voltage (V) |
30 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Single |
| Minimum Single Supply Voltage (V) |
6 |
| Typical Single Supply Voltage (V) |
9|12|15 |
| Maximum Single Supply Voltage (V) |
18 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Package Length (mm) |
4.9 |
| Package Width (mm) |
3.9 |
| Package Height (mm) |
1.25(Min) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1|3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Packaging Document |
Link to Datasheet |
|
| |

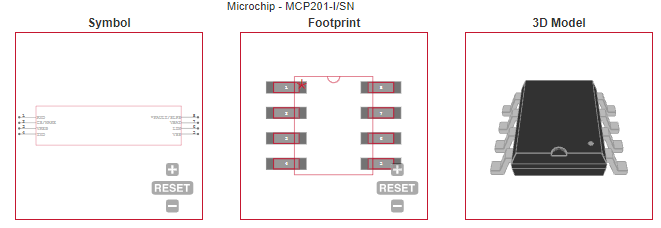

| ECAD MODELS |
 |
| |
