• Rail-to-Rail Input/Output
|
• Wide Bandwidth: 10 MHz (typical)
|
• Low Noise: 8.7 nV/Hz at 10 kHz (typical)
|
| • Low Offset Voltage:- Industrial Temperature: ±500 µV (max.)- Extended Temperature: ±250 µV (max.) |
| • Mid-Supply VREF: MCP6021 and MCP6023 |
| • Low Supply Current: 1 mA (typical) |
| • Total Harmonic Distortion:- 0.00053% (typical, G = 1 V/V) |
| • Unity Gain Stable |
| • Power Supply Range: 2.5V to 5.5V |
| • Temperature Range:- Industrial: -40°C to +85°C- Extended: -40°C to +125°C |
| |
| CATALOG |
| MCP6022T-I/SN COUNTRY OF ORIGIN |
MCP6022T-I/SN PARAMETRIC INFO
|
MCP6022T-I/SN PACKAGE INFO
|
MCP6022T-I/SN MANUFACTURING INFO
|
MCP6022T-I/SN PACKAGING INFO
|
MCP6022T-I/SN EACD MODELS
|
| MCP6022T-I/SN APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Thailand |
| Singapore |
| Malaysia |
| China |
| Taiwan (Province of China) |
| Philippines |
| |
PARAMETRIC INFO
|
| Manufacturer Type |
General Purpose Amplifier |
| Type |
General Purpose Amplifier |
| Rail to Rail |
Rail to Rail Input/Output |
| Minimum Single Supply Voltage (V) |
2.5 |
| Number of Channels per Chip |
2 |
| Process Technology |
CMOS |
| Minimum PSRR (dB) |
74 |
| Typical Single Supply Voltage (V) |
3|5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Output Type |
CMOS |
| Maximum Quiescent Current (mA) |
2.7@5.5V |
| Typical Gain Bandwidth Product (MHz) |
10 |
| Maximum Input Offset Voltage (mV) |
0.5@5.5V |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Input Bias Current (uA) |
0.015@5.5V@85C |
| Minimum CMRR (dB) |
70 |
| Maximum Supply Voltage Range (V) |
5.5 to 6 |
| Minimum CMRR Range (dB) |
70 to 71 |
| Typical Voltage Gain (dB) |
110 |
| Typical Slew Rate (V/us) |
7@5.5V |
| Typical Input Offset Current (uA) |
0.000001@5.5V |
| Typical Settling Time (ns) |
250 |
| Typical Output Current (mA) |
30(Max) |
| Typical Input Noise Voltage Density (nV/rtHz) |
8.7@5.5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) |
0.003@5.5V |
| Typical Input Bias Current (uA) |
0.000001@5.5V |
| Shut Down Support |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Single |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Package Length (mm) |
4.9 |
| Package Width (mm) |
3.9 |
| Package Height (mm) |
1.25(Min) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1|3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|

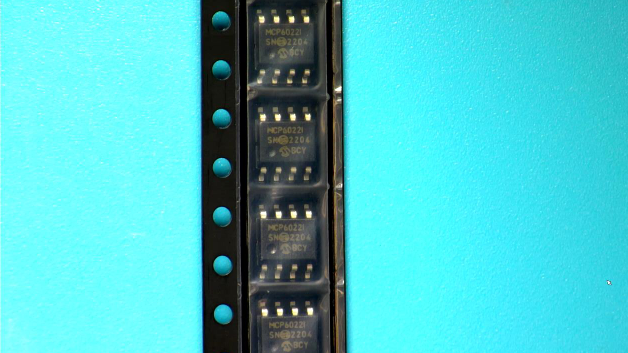

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3300 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|

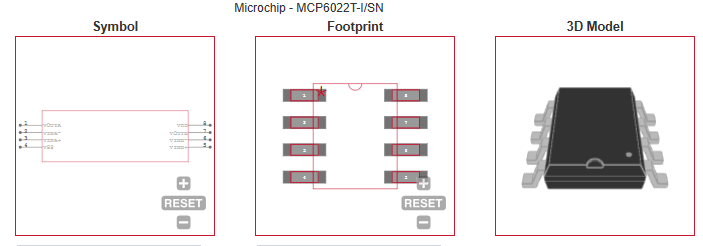

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Automotive |
| • Multi-Pole Active Filters |
| • Audio Processing |
| • DAC Buffer |
| • Test Equipment |
| • Medical Instrumentation |
|
