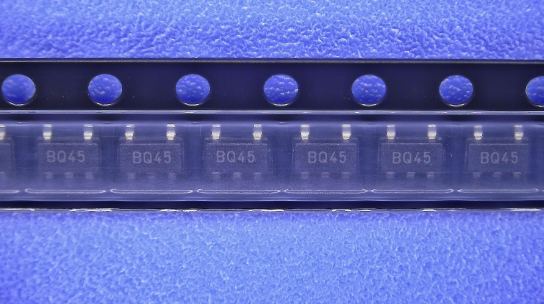

MCP6241T-E/OT Microchip Technology IC OPAMP GP 550KHZ RRO SOT23-5

label:
2024/05/7 287

• Gain Bandwidth Product: 550 kHz (typical)
• Supply Current: IQ = 50 µA (typical)
• Supply Voltage: 1.8V to 5.5V
• Rail-to-Rail Input/Output
• Extended Temperature Range: -40°C to +125°C
• Available in 5-pin SC-70 and SOT-23 packages
CATALOG
MCP6241T-E/OT COUNTRY OF ORIGIN
MCP6241T-E/OT PARAMETRIC INFO
MCP6241T-E/OT PACKAGE INFO
MCP6241T-E/OT MANUFACTURING INFO
MCP6241T-E/OT PACKAGING INFO
MCP6241T-E/OT EACD MODELS
MCP6241T-E/OT APPLICATIONS



COUNTRY OF ORIGIN
Thailand



PARAMETRIC INFO
Manufacturer Type General Purpose Amplifier
Type General Purpose Amplifier
Rail to Rail Rail to Rail Input/Output
Minimum Single Supply Voltage (V) 1.8
Number of Channels per Chip 1
Process Technology CMOS
Minimum PSRR (dB) 83(Typ)
Typical Single Supply Voltage (V) 3|5
Maximum Single Supply Voltage (V) 5.5
Output Type CMOS
Maximum Quiescent Current (mA) 0.07@5.5V
Typical Gain Bandwidth Product (MHz) 0.55
Maximum Input Offset Voltage (mV) 5@5.5V
Maximum Input Offset Current (uA) 0.000001(Typ)@5.5V
Maximum Operating Supply Voltage (V) 5.5
Minimum CMRR (dB) 60
Maximum Supply Voltage Range (V) 5.5 to 6
Minimum CMRR Range (dB) 60 to 65
Typical Voltage Gain (dB) 110
Typical Slew Rate (V/us) 0.3@5.5V
Typical Output Current (mA) 30(Max)
Typical Input Noise Voltage Density (nV/rtHz) 45@5.5V
Typical Noninverting Input Current Noise Density (pA/rtHz) 0.0006@5.5V
Typical Input Bias Current (uA) 0.000001@5.5V
Shut Down Support No
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Supplier Temperature Grade Extended
Power Supply Type Single



PACKAGE INFO
Supplier Package SOT-23
Basic Package Type Lead-Frame SMT
Pin Count 5
Lead Shape Gull-wing
PCB 5
Tab N/R
Package Length (mm) 2.9
Package Width (mm) 1.6
Package Height (mm) 1.3(Max)
Package Diameter (mm) N/R
Mounting Surface Mount
Package Description Small Outline Transistor
Package Family Name SOT
Package Outline Link to Datasheet



MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 20 to 40
Number of Reflow Cycle 3
Standard J-STD-020C
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Matte Sn annealed
Under Plating Material N/A
Terminal Base Material Cu Alloy



PACKAGING INFO
Packaging Suffix T
Packaging Tape and Reel
Quantity Of Packaging 3000
Reel Diameter (in) 7
Tape Pitch (mm) 4
Tape Width (mm) 8
Component Orientation 2 Pin At Sprocket Hole
Packaging Document Link to Datasheet
Tape Type Embossed



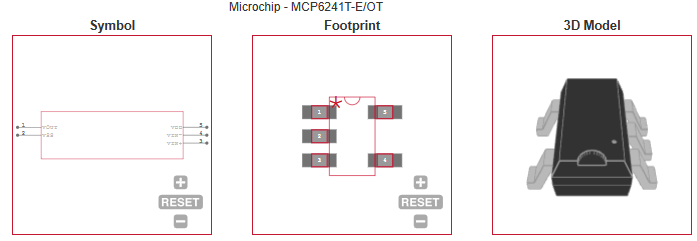

ECAD MODELS




APPLICATIONS
• Automotive
• Portable Equipment
• Photodiode (Transimpedance) Amplifier
• Automotive Sensors
• Notebooks and PDAs
• Battery-Powered Systems
