• Low Quiescent Current: 600 nA/Comparator (typ.)
|
• Rail-to-Rail Input: VSS - 0.3V to VDD + 0.3V
|
• CMOS/TTL-Compatible Output
|
• Propagation Delay: 4 µs(typical, 100 mV Overdrive)
|
• Wide Supply Voltage Range: 1.6V to 5.5V
|
• Available in Single, Dual and Quad
|
|
| CATALOG |

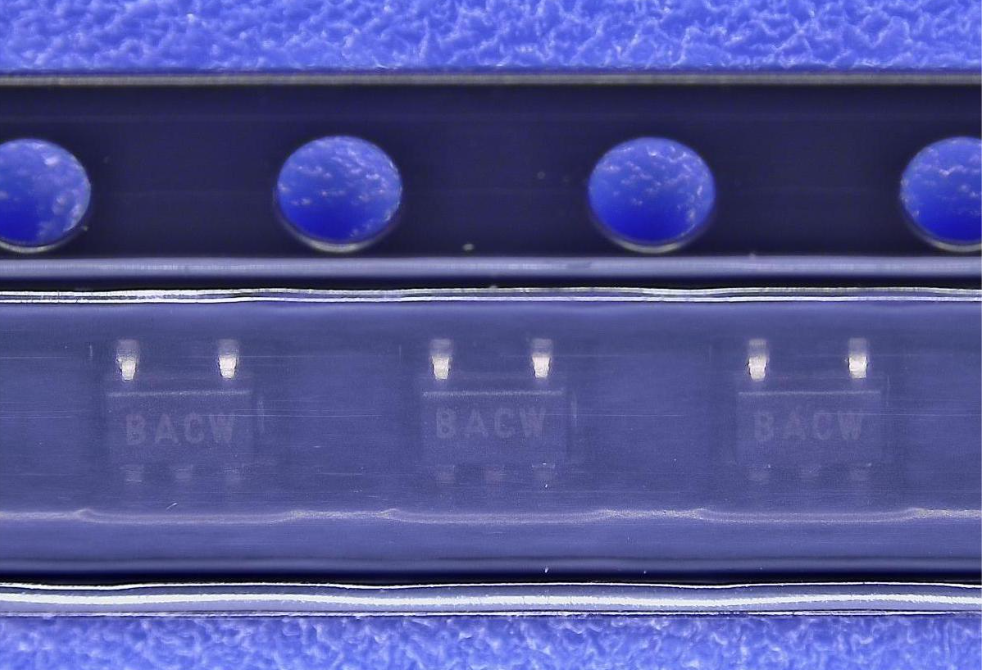

MCP6541UT-I/LT COUNTRY OF ORIGIN
|
MCP6541UT-I/LT PARAMETRIC INFO
|
MCP6541UT-I/LT PACKAGE INFO
|
MCP6541UT-I/LT MANUFACTURING INFO
|
MCP6541UT-I/LT PACKAGING INFO
|
MCP6541UT-I/LT ECAD MODELS
|
MCP6541UT-I/LT APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
Malaysia
|
|
PARAMETRIC INFO
|
| Rail to Rail |
Rail to Rail Input/Output |
| Manufacturer Type |
General Purpose Comparator |
| Process Technology |
CMOS |
| Typical PSRR (dB) |
80 |
| Number of Channels per Chip |
1 |
| Output Type |
Push-Pull |
| Maximum Input Offset Voltage (mV) |
7@5.5V |
| Maximum Input Bias Current (uA) |
0.000001(Typ)@5.5V |
| Typical CMRR (dB) |
70 |
| Strobe Capability |
No |
| Typical Output Current (mA) |
30(Max) |
| Maximum Propagation Delay Time (ns) |
8000 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Power Supply Type |
Single |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Single Supply Voltage (V) |
1.6 |
| Typical Single Supply Voltage (V) |
3|5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Maximum Quiescent Current (mA) |
0.001@5.5V |
|
|
PACKAGE INFO
|
| Supplier Package |
SC-70 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Package Length (mm) |
2 |
| Package Width (mm) |
1.25 |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-203AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
2 Pin At Sprocket Hole |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|
ECAD MODELS
|
 |
|
| APPLICATIONS |
| • Laptop Computers |
| • Mobile Phones |
| • Metering Systems |
| • Hand-held Electronics |
| • RC Timers |
| • Alarm and Monitoring Circuits |
| • Windowed Comparators |
| • Multivibrators |
| |
